ZUS1R52405 - Cosel

Description: Cosel DC-DC Converter, 5V dc/ 300mA Output, 18 → 36 V dc Input, 1.5W, Through Hole

Download ZUS1R52405 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

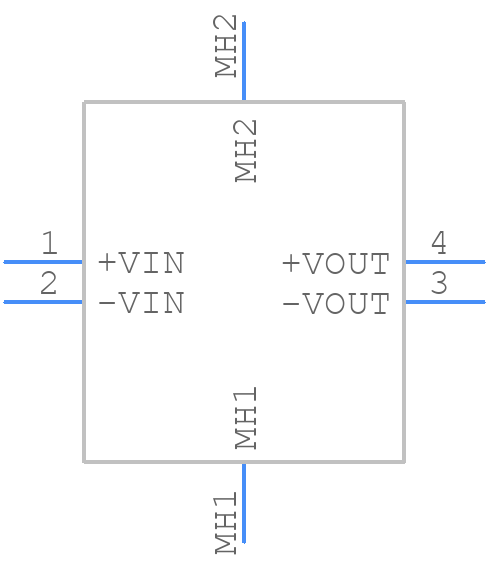

ZUS1R52405 - Cosel - PCB symbol
click to zoom
PCB Footprints

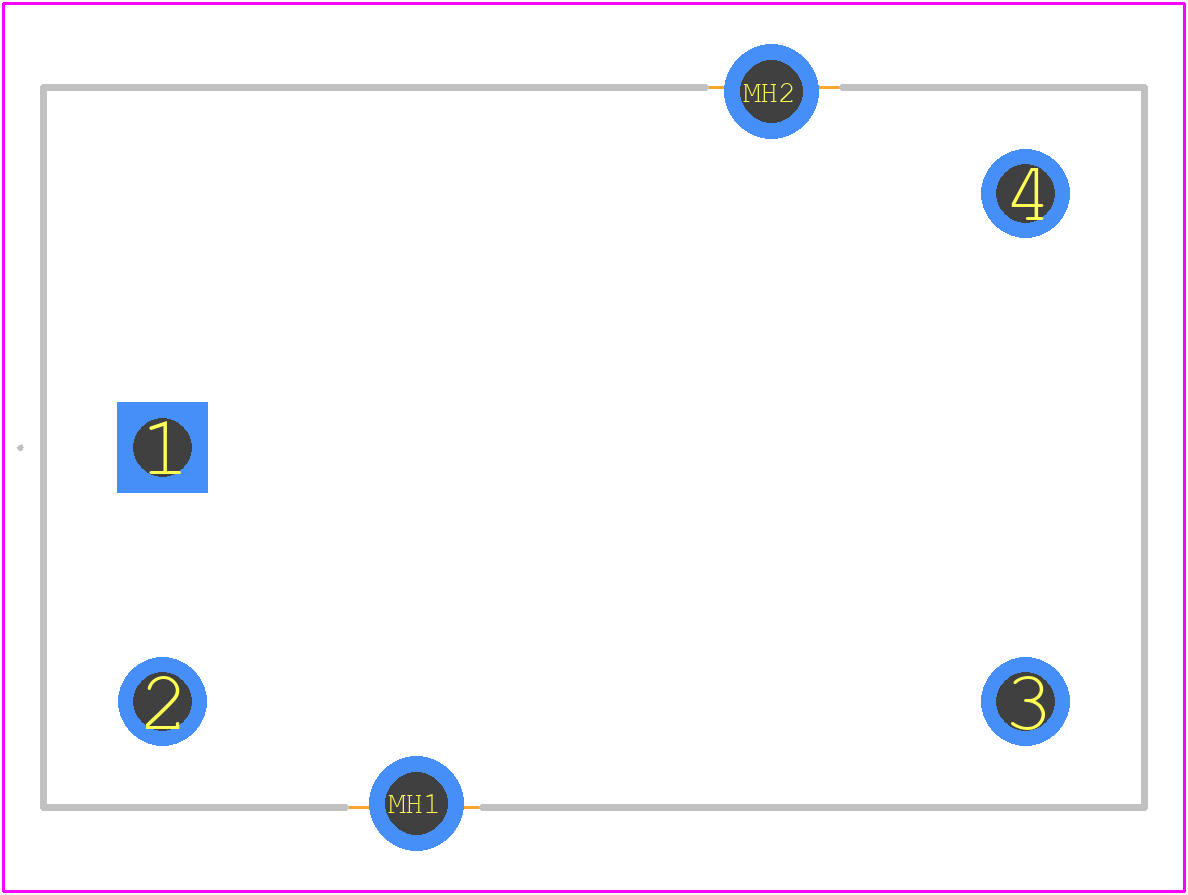

ZUS1R52405 - Cosel PCB footprint - Other - Other - ZUS1R52405-1
click to zoom
3D Models
ZUS1R52405 - Cosel - 3D model - Other - ZUS1R52405-1
click to zoom

ZUS1R52405 Details

  • Manufacturer Part Number:

    ZUS1R52405

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    MODULE,4LEAD,.9

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    1.5 W

ZUS1R52405 Frequently Asked Questions (FAQs)

  • Cosel recommends a multi-layer PCB with a large ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Ensure good airflow around the converter and avoid blocking the airflow with nearby components.
  • Follow the recommended PCB layout and ensure proper grounding. Use a metal enclosure and consider adding EMI filters or shielding to minimize radiation. Comply with relevant EMC standards such as EN55022 and CISPR22.
  • The maximum output capacitance is 220uF. Exceeding this value may cause instability or oscillation. Ensure the output capacitor is rated for the maximum output voltage and has a low ESR to minimize voltage ripple.
  • Yes, but it requires careful design and synchronization to ensure proper operation. Consult Cosel's application notes and consider using a dedicated redundancy module to simplify the design.
  • The ZUS1R52405 provides a temperature monitoring pin (VTM) and a fault signal pin (FS). Use these pins to connect to a microcontroller or monitoring circuit to detect overheating or faults.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZUS1R52405 Overview

Use the download button to access the ZUS1R52405 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZUS1R, or try a keyword search, such as Power Supply Modules
