ZVN2110ASTZ - Diodes Incorporated

Description: N-MOSFET,320mA,100V,E-Line ,ENHANCEMENT MODE VERTICAL DMOS FET , 100 V , 320 mA , 700 mW , -55 to +150 °C

Download ZVN2110ASTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

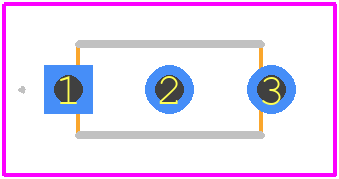

ZVN2110ASTZ - Diodes Incorporated PCB footprint - Other - Other - E-Line TO92 Compatible_2026-1
click to zoom
3D Models
ZVN2110ASTZ - Diodes Incorporated  - 3D model - Other - E-Line TO92 Compatible_2026-1
click to zoom

ZVN2110ASTZ Details

  • Manufacturer Part Number:

    ZVN2110ASTZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TO-92

  • Package Description:

    TO-92 COMPATIBLE, E-LINE PACKAGE-3

  • Pin Count:

    3

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    1

  • Configuration:

    SINGLE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    0.32 A

  • Drain-source On Resistance-Max:

    4 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PSIP-W3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
