ZW1R50515 - Cosel

Description: DC-DC Regulated Power Supply Module, 2 Output, 1.5W, Hybrid, PLASTIC PACKAGE-7

Download ZW1R50515 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ZW1R50515 - Cosel - PCB symbol
click to zoom
PCB Footprints

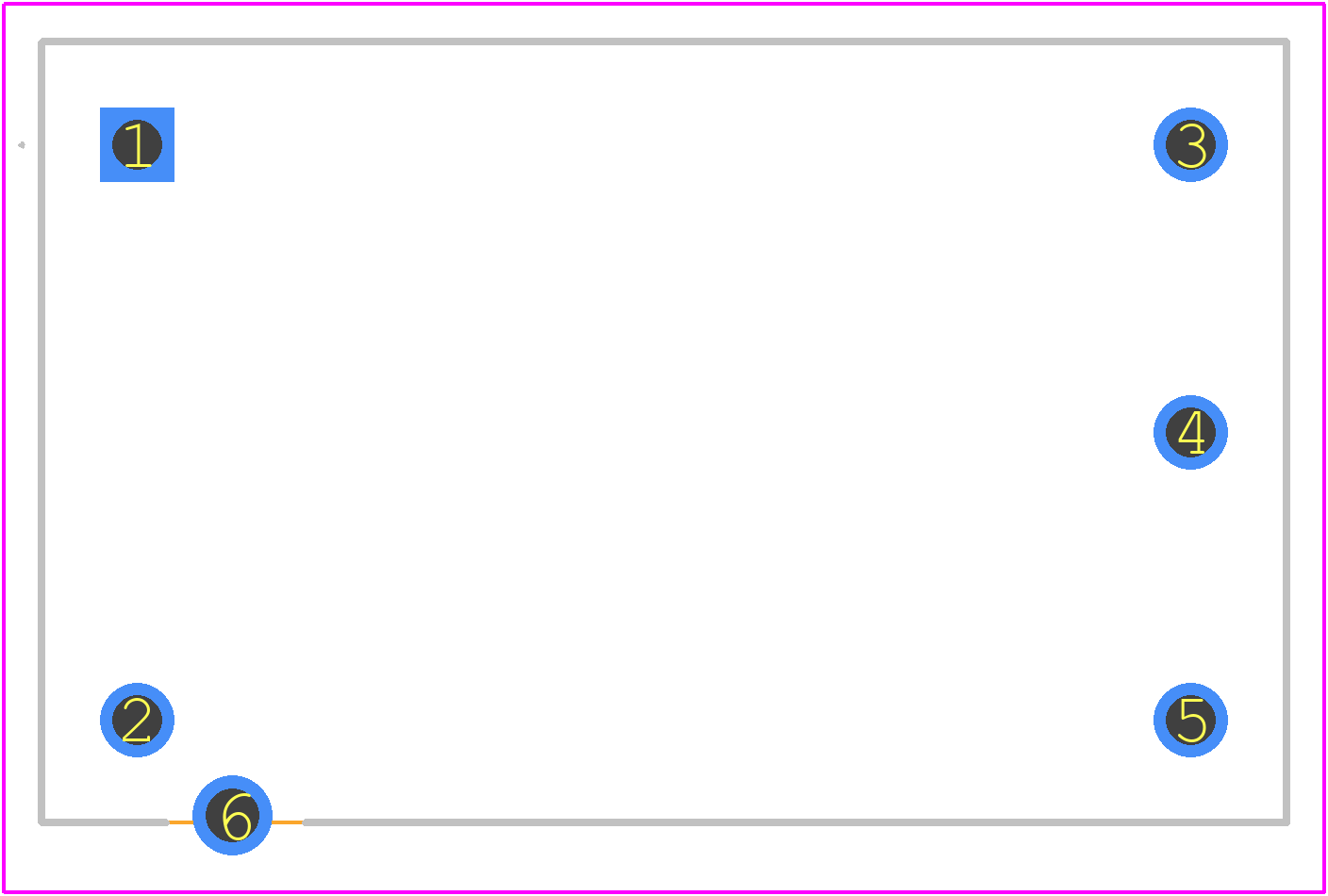

ZW1R50515 - Cosel PCB footprint - Other - Other - ZW1R50515-1
click to zoom
3D Models
ZW1R50515 - Cosel - 3D model - Other - ZW1R50515-1
click to zoom

ZW1R50515 Details

  • Manufacturer Part Number:

    ZW1R50515

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    PLASTIC PACKAGE-7

  • Pin Count:

    7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    0

  • Additional Feature:

    -15V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PXMA-P7

  • Length:

    33 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    50 °C

  • Output Voltage-Max:

    15.75 V

  • Output Voltage-Min:

    14.25 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    10.5 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    UNSPECIFIED

  • Total Power Output-Max:

    1.5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.72 mm

ZW1R50515 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • The ZW1R50515 is certified to UL60950-1, EN60950-1, and IEC60950-1 safety standards. Ensure your application meets the required safety certifications by following the guidelines and recommendations provided in the datasheet and safety certification documents.
  • The maximum allowable capacitance for the output filter capacitor is 100uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, the ZW1R50515 is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure reliable operation.
  • Cosel recommends a fuse rating of 5A to 10A, with a slow-blow or time-lag fuse type to ensure reliable operation and protection against input overcurrent.
