A good PCB layout for the ZXCT1010E5TA involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
To ensure stability, make sure the input and output capacitors are of high quality and have low ESR. Also, ensure the device is operated within its recommended operating conditions, and the input voltage is within the specified range. Additionally, a 1kΩ resistor between the VIN and EN pins can help prevent oscillation.
The ZXCT1010E5TA can handle a maximum current of 1A. However, it's recommended to derate the current to 0.8A for continuous operation to ensure reliability and prevent overheating.
The ZXCT1010E5TA is rated for operation up to 125°C. However, it's recommended to derate the device's performance at high temperatures. For temperatures above 85°C, reduce the input voltage and output current to prevent overheating and ensure reliable operation.
To troubleshoot issues with the ZXCT1010E5TA, start by checking the input voltage, output voltage, and current. Verify that the device is operated within its recommended operating conditions. Check for any signs of overheating, and ensure the PCB layout is correct. If issues persist, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXCT1010E5TA Overview

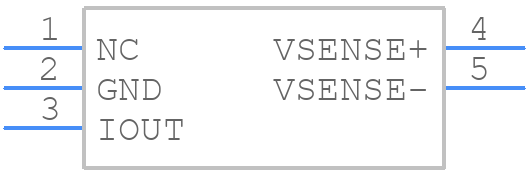

Use the download button to access the ZXCT1010E5TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXCT1,
or try a keyword search, such as Power Management Circuits
