A good PCB layout for the ZXCT1081E5TA involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input capacitor as close to the device as possible.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be chosen based on the input voltage and current requirements.
The ZXCT1081E5TA is rated for operation from -40°C to 125°C, making it suitable for a wide range of applications.
Yes, the ZXCT1081E5TA is suitable for high-reliability applications due to its high MTBF (Mean Time Between Failures) rating and its compliance with various industry standards, such as AEC-Q100.
The power dissipation of the ZXCT1081E5TA can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXCT1081E5TA Overview

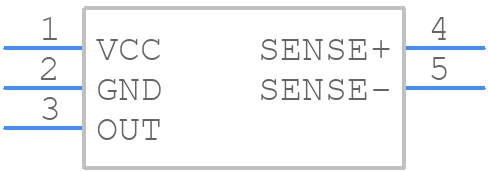

Use the download button to access the ZXCT1081E5TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXCT1,
or try a keyword search, such as Power Management Circuits
