A good PCB layout for the ZXCT1087E5TA involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a low-ESR capacitor for the output filter and to keep the input capacitor as close to the device as possible.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be chosen to ensure a stable input voltage. It's also crucial to consider the device's power dissipation and thermal management.
The ZXCT1087E5TA has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device away from other heat sources. The PCB layout should also be designed to minimize thermal resistance.
The output capacitor selection depends on the specific application requirements, such as the output voltage, output current, and ripple voltage. A general guideline is to choose a capacitor with a capacitance value between 10uF to 100uF, and a voltage rating that exceeds the output voltage. The capacitor's ESR should also be considered to ensure stability.
The ZXCT1087E5TA has a typical quiescent current of 50uA. This current consumption should be considered when designing the power supply and calculating the overall power consumption of the system. In battery-powered applications, the quiescent current can impact the battery life, and designers should consider this when selecting the device and designing the system.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXCT1087E5TA Overview

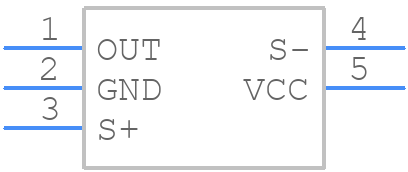

Use the download button to access the ZXCT1087E5TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXCT1,
or try a keyword search, such as Power Management Circuits
