A good PCB layout for the ZXCT199B2DW-7 should prioritize a low-impedance path for the input and output pins, with a solid ground plane and minimal trace lengths. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended. Additionally, ensure that the input and output capacitors are placed close to the device and connected to the power and ground planes with short, wide traces.
To ensure stability and prevent oscillations, make sure to follow the recommended operating conditions, including input and output voltage ranges, and output current limits. Also, ensure that the input and output capacitors are of sufficient value and type, and that the PCB layout is optimized for low impedance and minimal parasitic inductance. Additionally, consider adding a small resistor (e.g., 10-100 ohms) in series with the output to dampen any potential oscillations.
The ZXCT199B2DW-7 is rated for operation from -40°C to +125°C, but the maximum operating temperature range may vary depending on the specific application and environmental conditions. It's essential to consider the device's thermal characteristics, including its thermal resistance and power dissipation, to ensure reliable operation within the desired temperature range.
The ZXCT199B2DW-7 is a commercial-grade device, but Diodes Incorporated offers automotive-grade and high-reliability versions of this device, such as the ZXCT199B2DW-7Q or ZXCT199B2DW-7H, which are specifically designed for high-reliability and automotive applications. These devices meet stricter quality and reliability standards, including AEC-Q100 and ISO/TS 16949 certifications.
The ZXCT199B2DW-7 has built-in ESD protection, but it's still essential to follow proper ESD handling and storage procedures to prevent damage. Use ESD-safe materials, such as wrist straps, mats, and bags, and ensure that the device is stored in a dry, static-free environment. Additionally, consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to further protect the device and surrounding circuitry.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXCT199B2DW-7 Overview

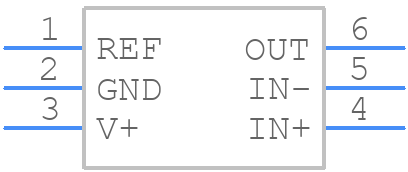

Use the download button to access the ZXCT199B2DW-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXCT1,
or try a keyword search, such as Operational Amplifiers
