ZXLD1374QESTTC - Diodes Incorporated

Description: LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 1.5A (Switch) 20-TSSOP-EP

Download ZXLD1374QESTTC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

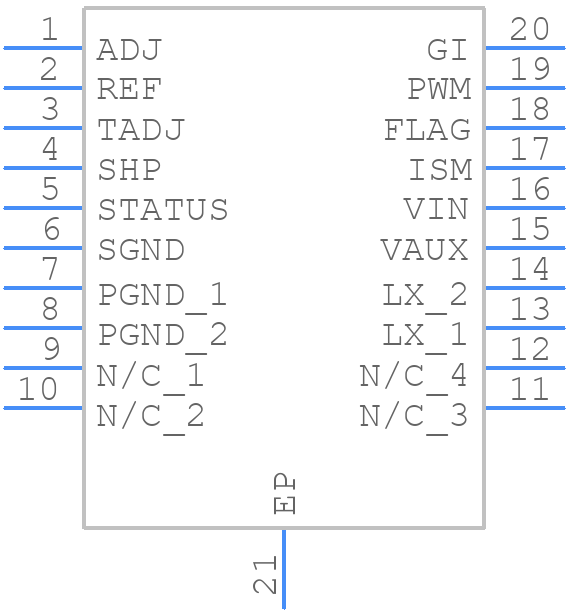

ZXLD1374QESTTC - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints
ZXLD1374QESTTC - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP-20EP
click to zoom
3D Models
ZXLD1374QESTTC - Diodes Incorporated - 3D model - Small Outline Packages - TSSOP-20EP
click to zoom

ZXLD1374QESTTC Details

  • Manufacturer Part Number:

    ZXLD1374QESTTC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    8

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Segments:

    4

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    1 MHz

ZXLD1374QESTTC Frequently Asked Questions (FAQs)

  • Diodes Incorporated recommends a compact PCB layout with short traces and minimal vias to minimize parasitic inductance and capacitance. A 4-layer PCB with a solid ground plane is recommended. Additionally, the input and output capacitors should be placed close to the device pins.
  • To ensure stability, the output capacitor should be selected based on the output voltage and load current. A minimum output capacitance of 10uF is recommended. Additionally, the input capacitor should be selected based on the input voltage and current. A minimum input capacitance of 1uF is recommended. The device should also be operated within the recommended operating conditions.
  • The maximum ambient temperature range for the ZXLD1374QESTTC is -40°C to +125°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
  • Yes, the ZXLD1374QESTTC is suitable for high-reliability applications. It is manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it is recommended to follow the recommended operating conditions and design guidelines to ensure the device operates within its specifications.
  • To troubleshoot issues with the ZXLD1374QESTTC, first check the input and output voltages to ensure they are within the recommended operating range. Check the output current to ensure it is within the recommended maximum current rating. Also, check the PCB layout to ensure it is compact and follows the recommended layout guidelines. If the issue persists, contact Diodes Incorporated's technical support for further assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZXLD1374QESTTC Overview

Use the download button to access the ZXLD1374QESTTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXLD1, or try a keyword search, such as Display Drivers
