ZXMHC10A07T8TA - Diodes Incorporated

Description: Quad N/P-Channel MOSFET, 1.1 A, 800 mA, 100 V, 8-Pin SM Diodes Inc ZXMHC10A07T8TA

Download ZXMHC10A07T8TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

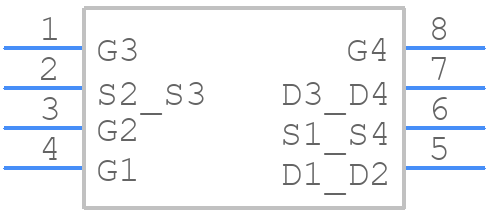

ZXMHC10A07T8TA - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

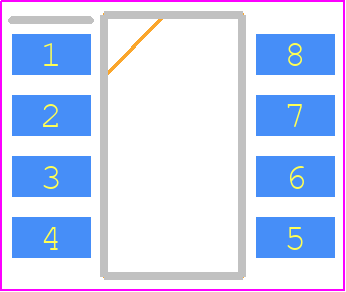

ZXMHC10A07T8TA - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SM-8 1
click to zoom
3D Models
ZXMHC10A07T8TA - Diodes Incorporated - 3D model - Small Outline Packages - SM-8 1
click to zoom

ZXMHC10A07T8TA Details

  • Manufacturer Part Number:

    ZXMHC10A07T8TA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    SM8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    1

  • Configuration:

    BRIDGE, 4 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    100 V

  • Drain Current-Max (ID):

    1 A

  • Drain-source On Resistance-Max:

    0.7 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON
