ZXMHC3F381N8TC - Diodes Incorporated

Description: MOSFET Dual N/P-Ch 30V 4.98A/4.13A SOIC8 Diodes Inc ZXMHC3F381N8TC Quad N/P-channel MOSFET Transistor, 8-Pin SO

Download ZXMHC3F381N8TC Model

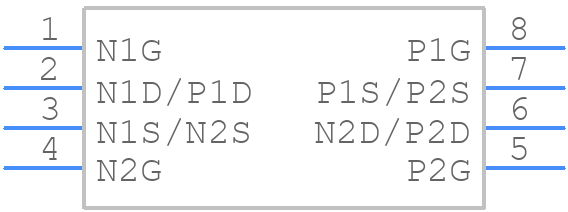

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZXMHC3F381N8TC - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8(Thickness=1.7mm)
click to zoom
3D Models
ZXMHC3F381N8TC - Diodes Incorporated  - 3D model - Small Outline Packages - SO-8(Thickness=1.7mm)
click to zoom

ZXMHC3F381N8TC Details

  • Manufacturer Part Number:

    ZXMHC3F381N8TC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Configuration:

    BRIDGE, 4 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    3.98 A

  • Drain-source On Resistance-Max:

    0.033 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    1.35 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

ZXMHC3F381N8TC Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the ZXMHC3F381N8TC is a standard SOT23 package with a 1.3mm x 1.3mm body size and a 0.5mm pitch. The datasheet provides a recommended land pattern and soldering guidelines.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 1uF and a maximum ESR of 1 ohm. Additionally, the input capacitor should be at least 1uF with an ESR of 0.1 ohm or less.
  • The maximum ambient temperature range for the ZXMHC3F381N8TC is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Yes, the ZXMHC3F381N8TC is AEC-Q100 qualified, making it suitable for use in automotive applications. However, it is essential to follow the recommended operating conditions and guidelines to ensure reliable operation.
  • The power dissipation of the ZXMHC3F381N8TC can be calculated using the formula: Pd = (Vin - Vout) x Iout. Where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
