A good PCB layout for the ZXMS6006SGTA should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
To ensure reliable operation at high temperatures, ensure the device is properly mounted on a heat sink, and the PCB is designed to minimize thermal resistance. Also, consider derating the device's power handling at high temperatures according to the datasheet.
The ZXMS6006SGTA has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the PCB is properly grounded.
Yes, the ZXMS6006SGTA is suitable for high-frequency switching applications. However, ensure the PCB layout is optimized for high-frequency operation, and consider using a gate driver with a low output impedance to minimize switching losses.
The ZXMS6006SGTA is a high-reliability device with a typical MTBF of >10^6 hours. However, the actual MTBF will depend on the application, operating conditions, and quality of the PCB assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXMS6006SGTA Overview

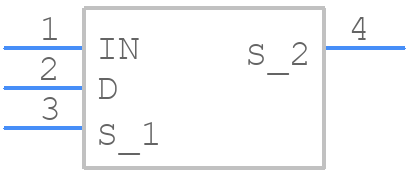

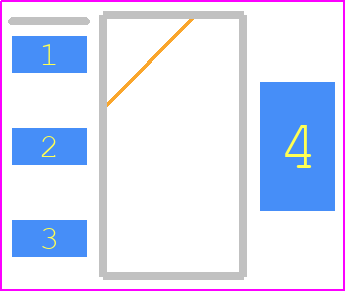

Use the download button to access the ZXMS6006SGTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXMS6,
or try a keyword search, such as Power Management Circuits
