A good PCB layout for the ZXRE060AFT4-7 should include a solid ground plane, short and wide traces for the input and output, and a decoupling capacitor (e.g., 10nF) close to the device. Additionally, keep the input and output traces separate to minimize noise coupling.
To ensure stability, make sure to follow the recommended operating conditions, including input voltage, output current, and temperature range. Also, add a compensation capacitor (e.g., 10nF to 100nF) between the output and the adjust pin to prevent oscillations.
The maximum allowed input voltage ripple for the ZXRE060AFT4-7 is typically around 1% to 2% of the input voltage. Exceeding this limit may affect the device's performance and stability.
The ZXRE060AFT4-7 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating conditions and consider derating the device for high-temperature applications.
The output voltage tolerance can be calculated by considering the device's output voltage accuracy, line regulation, and load regulation. Typically, the output voltage tolerance is around ±2% to ±3% of the nominal output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXRE060AFT4-7 Overview

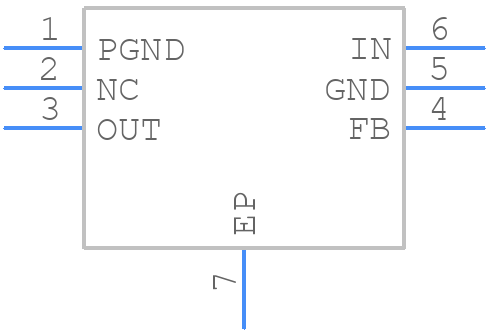

Use the download button to access the ZXRE060AFT4-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXRE0,
or try a keyword search, such as Voltage References
