A good PCB layout for the ZXRE160AFT4-7 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor is of high quality and has a low ESR, the input capacitor is properly sized, and the device is operated within its recommended operating conditions. Additionally, a minimum of 10uF output capacitance is recommended.
The maximum ambient temperature range for the ZXRE160AFT4-7 is -40°C to +125°C. However, the device's performance may degrade at higher temperatures, and the junction temperature should not exceed 150°C.
Yes, the ZXRE160AFT4-7 is suitable for high-reliability applications. It is manufactured using a high-reliability process, and its performance is guaranteed over the full operating temperature range. However, it is essential to follow proper design and manufacturing guidelines to ensure the device's reliability.
To troubleshoot issues with the ZXRE160AFT4-7, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions, and check for any signs of overheating or physical damage. Use an oscilloscope to check for any oscillations or noise on the output.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
ZXRE160AFT4-7 Overview

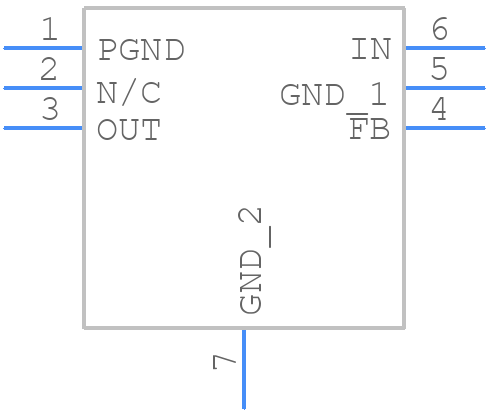

Use the download button to access the ZXRE160AFT4-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXRE1,
or try a keyword search, such as Voltage References
