A good PCB layout for the ZXTC4591AMCTA involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure output voltage stability, it's essential to use a suitable output capacitor with a low ESR (Equivalent Series Resistance) and a high ripple current rating. A minimum output capacitance of 10uF is recommended, and the capacitor should be placed close to the device.
The ZXTC4591AMCTA has an operating ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
Yes, the ZXTC4591AMCTA is suitable for high-reliability and automotive applications. It meets the AEC-Q100 qualification standard for automotive-grade devices and has a high MTBF (Mean Time Between Failures) rating. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device's reliability and performance.
To troubleshoot issues with the ZXTC4591AMCTA, start by checking the input voltage, output load, and PCB layout. Verify that the device is operated within the recommended conditions and that the output capacitor is suitable. Use a thermal camera or thermometer to check for overheating, and ensure that the device is properly soldered and mounted. If the issue persists, consult the datasheet and application notes or contact Diodes Incorporated's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ZXTC4591AMCTA Overview

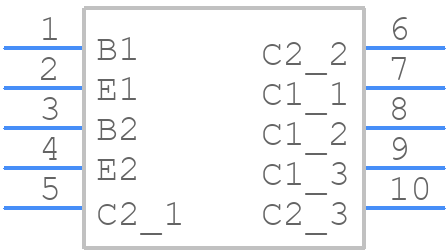

Use the download button to access the ZXTC4591AMCTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ZXTC4,
or try a keyword search, such as Small Signal Bipolar Transistors
