ZXTC6717MCTA - Diodes Incorporated

Description: COMPLEMENTARY 15V NPN & 12V PNP LOW SATURATION TRANSISTOR

Download ZXTC6717MCTA Model

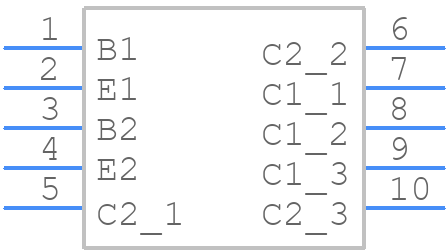

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ZXTC6717MCTA - Diodes Incorporated PCB footprint - Other - Other - W-DFN3020-8
click to zoom
3D Models
ZXTC6717MCTA - Diodes Incorporated  - 3D model - Other - W-DFN3020-8
click to zoom

ZXTC6717MCTA Details

  • Manufacturer Part Number:

    ZXTC6717MCTA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFN

  • Package Description:

    GREEN, PLASTIC, DFN3020B-8, 8 PIN

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    4.5 A

  • Collector-Emitter Voltage-Max:

    15 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    150

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Power Dissipation-Max (Abs):

    3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    120 MHz

ZXTC6717MCTA Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the ZXTC6717MCTA is 2.7V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF and a maximum ESR of 1 ohm.
  • The maximum output current that the ZXTC6717MCTA can provide is 1.5A.
  • To protect the ZXTC6717MCTA from overheating, it is recommended to provide adequate heat sinking and to ensure that the device is operated within the recommended temperature range of -40°C to 125°C.
  • The EN (Enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ZXTC6717MCTA Overview

Use the download button to access the ZXTC6717MCTA schematic symbol, PCB footprint, and 3D model.
