ZXTR1005K4-13 footprint, schematic symbol and 3D model by Diodes Incorporated

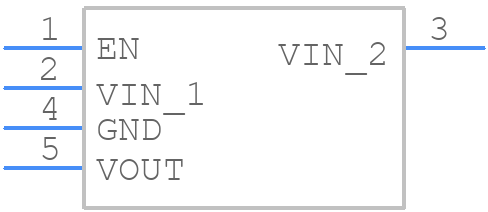

Symbol

click to zoom

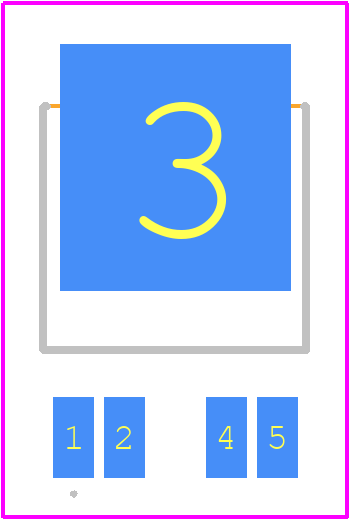

PCB Footprints

ZXTR1005K4-13 - Diodes Incorporated PCB footprint - Other - Other - TO252-4 _2025

click to zoom

3D Models

ZXTR1005K4-13 - Diodes Incorporated - 3D model - Other - TO252-4 _2025

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ZXTR1005K4-13
Part Number ZXTR1005K4-13
Manufacturer Diodes Incorporated
Pin Count 5
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - TO252-4 _2025
Released Date Feb 9, 2021
Last Modified Date Jan 20, 2026 5:47 AM UTC
Pinout / Pin List Click Here (Member Only)

ZXTR1005K4-13 Details

Manufacturer Part Number:
ZXTR1005K4-13
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TO-252, 5/4 PIN
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
12 Weeks
Manufacturer:
Diodes Incorporated
YTEOL:
6
Input Voltage-Max:
100 V
Input Voltage-Min:
10 V
JESD-30 Code:
R-PSSO-G4
JESD-609 Code:
e3
Length:
6.58 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
4
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-55 °C
Output Current1-Max:
0.05 A
Output Voltage1-Max:
5.1 V
Output Voltage1-Min:
4.9 V
Output Voltage1-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
TO-252
Package Equivalence Code:
SMSIP5H,.37,50TB
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Regulator Type:
FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max:
2.52 mm
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
SINGLE
Time@Peak Reflow Temperature-Max (s):
30
Voltage Tolerance-Max:
2%
Width:
6.1 mm

ZXTR1005K4-13 Frequently Asked Questions (FAQs)

A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a thermal relief pattern, and ensuring good thermal conduction to the surrounding copper area.
To ensure reliable operation at high temperatures, ensure the device is operated within the recommended temperature range, use a suitable thermal interface material, and provide adequate heat sinking and airflow.
The ZXTR1005K4-13 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and use ESD-protective packaging and materials.
The ZXTR1005K4-13 is a commercial-grade device, but Diodes Incorporated offers other variants with enhanced reliability and automotive-grade options, such as the ZXTR1005K4-13-Q or ZXTR1005K4-13-A, which may be suitable for high-reliability or automotive applications.
The recommended soldering conditions for the ZXTR1005K4-13 are a peak temperature of 260°C, with a soldering time of 10 seconds or less, and using a solder with a melting point above 217°C.
