iW657P footprint, schematic symbol and 3D model by Renesas Electronics

iW657P - Renesas Electronics

Description: The iW657P USB power delivery (USB PD) 3.0 interface controller resides on the secondary side of the AC/DC power supply and manages the communication between the power adapter and mobile device.The iW657P works with Renesas' (iW1791, iW1797, iW1799) RapidCharge™ primary-side controller and supports fast charging protocols, including USB PD 3.0, Qualcomm Quick Charge 4+ and direct charging. It transmits all necessary information via an optocoupler to the primary side, including voltage requests, output curre

Download iW657P Model

Schematic
symbols

PCB
footprints

3D
models

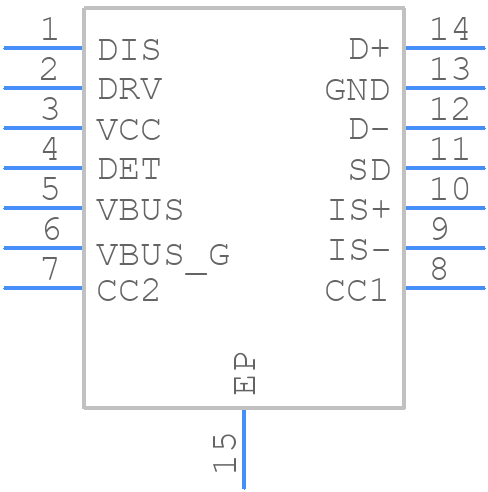

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for iW657P
Part Number iW657P
Manufacturer Renesas Electronics
Pin Count 15
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - iW657P_1
Released Date Aug 6, 2022
Last Modified Date Jan 29, 2025 12:30 PM UTC
Pinout / Pin List Click Here (Member Only)

iW657P Details

Manufacturer Part Number:
iW657P
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

iW657P Overview

Use the download button to access the iW657P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like iW657, or try a keyword search, such as Power Management Circuits
