Part Image

sst49lf080a-33-4c-nhe - Microchip

Description: SST49LF080A-33-4C-NHE, Parallel Split Gate Flash Memory, 1024K x 8 bit 8Mbit, 11ns, 3 → 3.6 V, 32-Pin, PLCC

Download sst49lf080a-33-4c-nhe Model

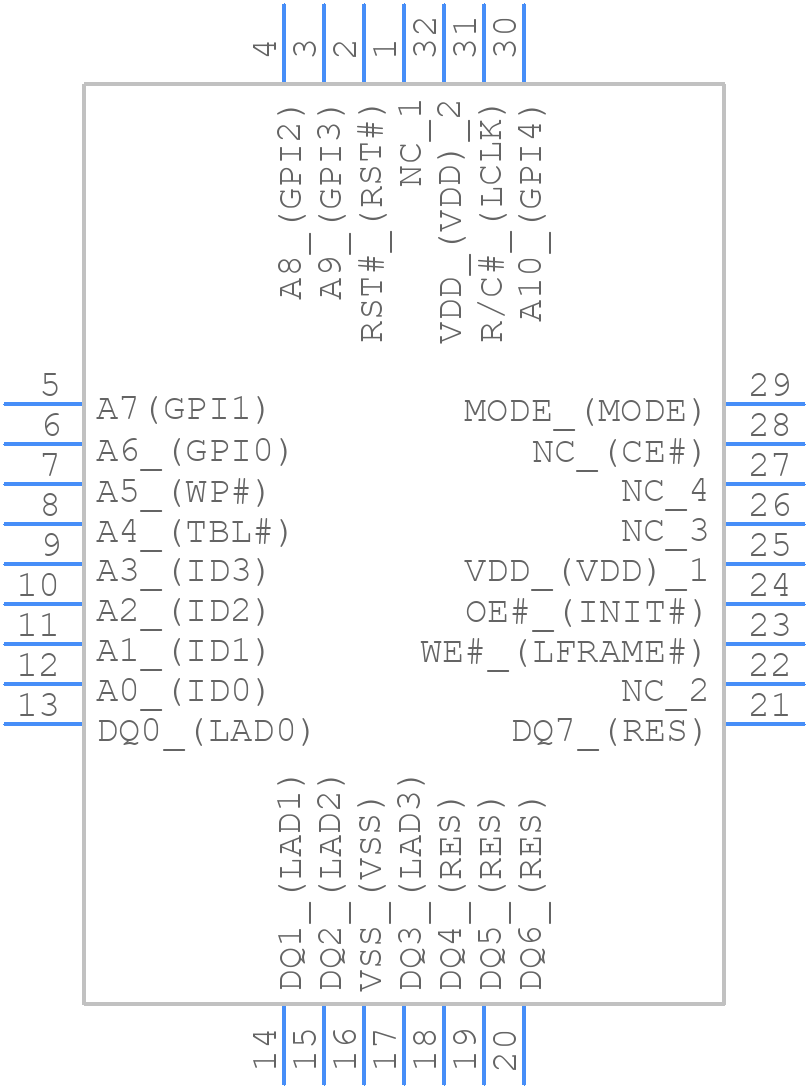

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

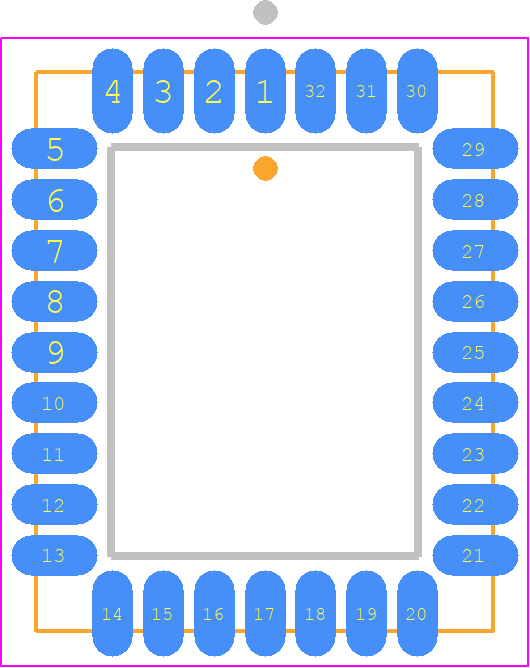

sst49lf080a-33-4c-nhe - Microchip PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - NH (32-pin PLCC)
click to zoom

sst49lf080a-33-4c-nhe Details

  • Manufacturer Part Number:

    SST49LF080A-33-4C-NHE

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFJ

  • Pin Count:

    32

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Thailand

  • ECCN Code:

    3A991.B.1.A

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    24.61

  • Access Time-Max:

    120 ns

  • Boot Block:

    TOP

  • Clock Frequency-Max (fCLK):

    33 MHz

  • Command User Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    100

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PQCC-J32

  • JESD-609 Code:

    e3

  • Length:

    13.97 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Sectors/Size:

    256

  • Number of Terminals:

    32

  • Number of Words:

    1048576 words

  • Number of Words Code:

    1000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Equivalence Code:

    LDCC32,.5X.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    245

  • Programming Voltage:

    3 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.556 mm

  • Sector Size:

    4K

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.024 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    11.43 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

sst49lf080a-33-4c-nhe Overview

Use the download button to access the sst49lf080a-33-4c-nhe schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like sst49, or try a keyword search, such as Flash Memories

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th

Parts related to sst49lf080a-33-4c-nhe

Showing 0 results

sst49lf080a-33-4c-nhe Alternates

Showing results

Image Part Number Model
Part Image SST49LF008A-33-4C-NHE Microchip Technology Inc

1M X 8 FLASH 3V PROM, 120 ns, PQCC32, ROHS COMPLIANT, PLASTIC, MS-016AE, LCC-32
