- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 0031.2550
- Part Number 0031.2550
- Manufacturer SCHURTER
- Pin Count 3
- Part Category Undefined or Miscellaneous
- Package Category Other

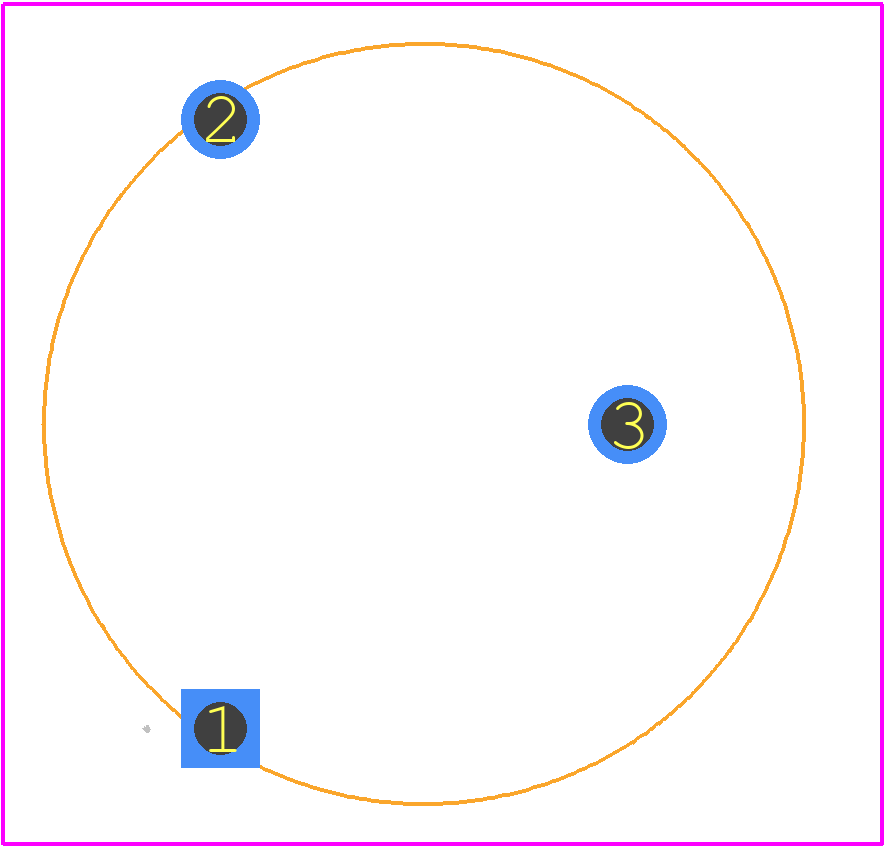

- Footprint Name Other - 0031.2550-1
- Released Date Jul 20, 2022
- Last Modified Date Sep 4, 2025 11:24 AM UTC
- Pinout / Pin List Click Here (Member Only)
0031.2550 Details
-
Manufacturer Part Number:
0031.2550
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8533.40.80.70
-
Factory Lead Time:
10 Weeks, 5 Days
-
Manufacturer:
Schurter Electronic Components
-
Resistor Type:
PTC RESETTABLE FUSE
0031.2550 Frequently Asked Questions (FAQs)
-
Schurter recommends a minimum PCB spacing of 2mm between the fuse and other components, and a minimum of 1mm between the fuse and the PCB edge. A fuse holder or clip is also recommended to ensure secure mounting and prevent damage.
-
Yes, the 0031.2550 fuse is designed to meet the requirements of IEC 60127-1 and is suitable for use in high-vibration and high-shock applications. However, it's recommended to consult with Schurter's application engineers to ensure the fuse meets the specific requirements of your application.
-
The 0031.2550 fuse is designed to handle inrush currents up to 10 times the rated current for a duration of 10ms. However, it's recommended to consult with Schurter's application engineers to ensure the fuse meets the specific inrush current requirements of your application.
-
Yes, the 0031.2550 fuse is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
-
The typical response time of the 0031.2550 fuse is around 1-2 seconds at the rated current. However, this can vary depending on the application and environmental conditions.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
0031.2550 Overview
Use the download button to access the 0031.2550 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 0031.,
or try a keyword search, such as Non-linear Resistors
