- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 0031.2560
- Part Number 0031.2560
- Manufacturer SCHURTER
- Pin Count 3
- Part Category Connector
- Package Category Other

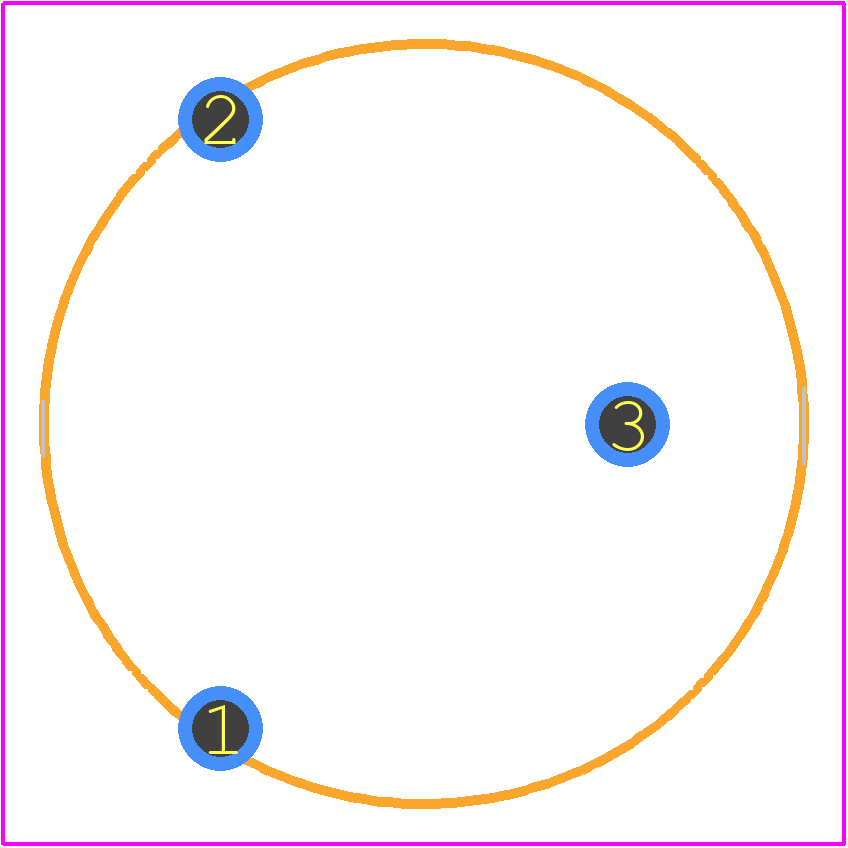

- Footprint Name Other - 0031.2560-2
- Released Date Apr 13, 2020
- Last Modified Date Sep 4, 2025 11:24 AM UTC
- Pinout / Pin List Click Here (Member Only)
0031.2560 Details
-
Manufacturer Part Number:
0031.2560
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
HTS Code:
8533.40.80.70
-
Factory Lead Time:
10 Weeks, 5 Days
-
Manufacturer:
Schurter Electronic Components
-
Resistor Type:
PTC RESETTABLE FUSE
0031.2560 Frequently Asked Questions (FAQs)
-
Schurter recommends a minimum PCB spacing of 2mm around the fuse to ensure safe and reliable operation. A larger spacing is recommended for high-voltage applications. It's also important to follow the recommended PCB layout guidelines to minimize thermal resistance and ensure proper heat dissipation.
-
The 0031.2560 fuse is rated for operation up to 125°C, but its performance may degrade at higher temperatures. For high-temperature applications, Schurter recommends derating the fuse's current rating or using a fuse with a higher temperature rating, such as the 0031.2561.
-
The 0031.2560 fuse is designed to handle inrush currents up to 10 times its rated current for a short duration (typically 8ms). However, repeated inrush currents may affect the fuse's lifespan. It's essential to consider the application's inrush current requirements and select a fuse with an appropriate I²t rating.
-
The 0031.2560 fuse is rated for AC applications up to 250V, but it can also be used in high-voltage DC applications up to 320V. However, Schurter recommends consulting their application notes and performing thorough testing to ensure the fuse's performance and reliability in DC applications.
-
The 0031.2560 fuse is not recommended for use in parallel configurations, as this can affect its performance and reliability. Series configurations are possible, but Schurter recommends consulting their application notes and performing thorough testing to ensure the fuse's performance and reliability in such configurations.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
0031.2560 Overview
Use the download button to access the 0031.2560 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 0031.,
or try a keyword search, such as Non-linear Resistors
