0430452007 - Molex

Description: Microfit Dual Row Vertical Thru Hole Header, 20 Positions

Download 0430452007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

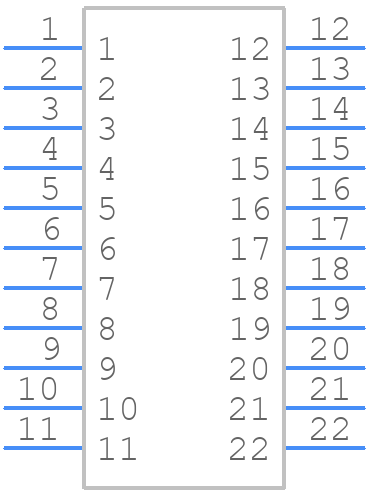

Symbol
0430452007 - Molex - PCB symbol
click to zoom

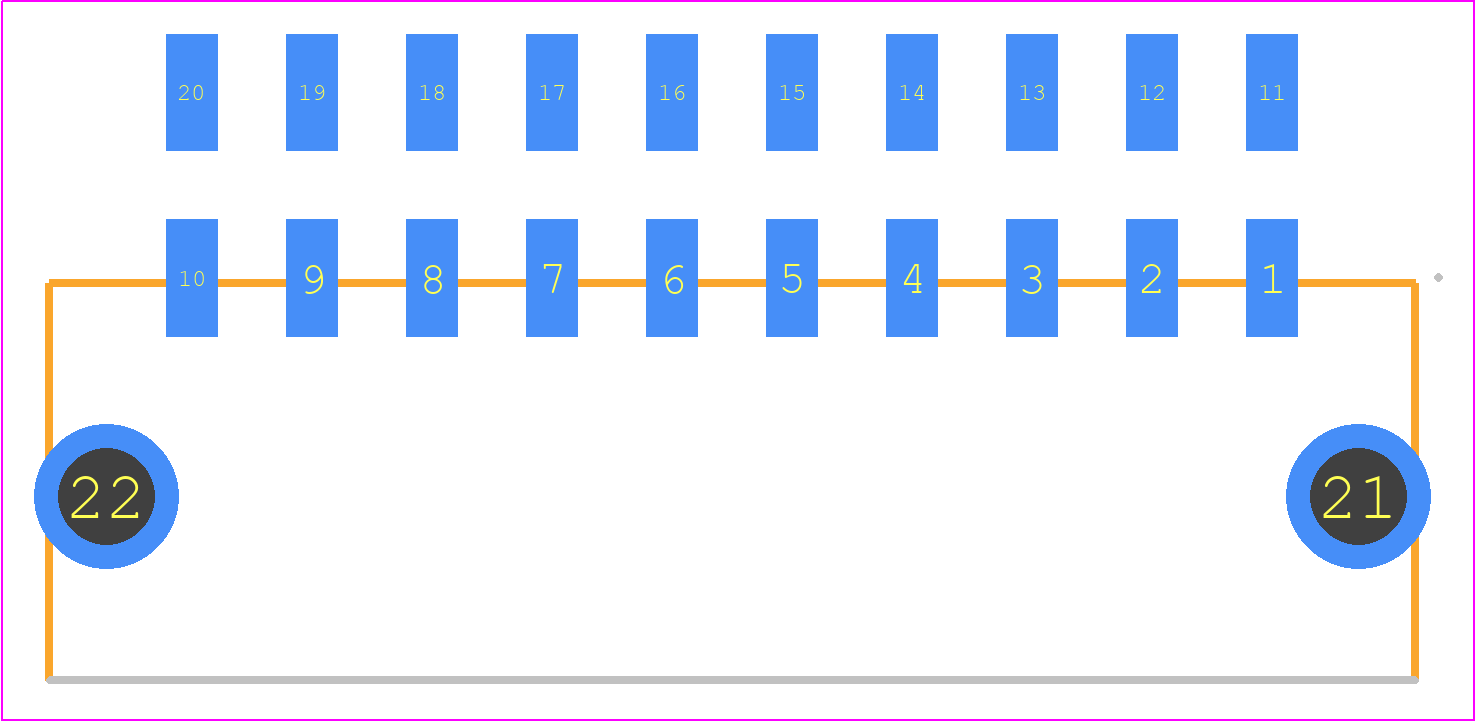

PCB Footprints
0430452007 - Molex PCB footprint - Other - Other - 0430452007
click to zoom
3D Models
0430452007 - Molex - 3D model - Other - 0430452007
click to zoom

0430452007 Details

  • Manufacturer Part Number:

    0430452007

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Mexico, Puerto Rico, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8.4

  • Additional Feature:

    RATED CURRENT(POWER): 8.5A

  • Body Breadth:

    0.345 inch

  • Body Depth:

    0.606 inch

  • Body Length:

    1.325 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Reference Standard:

    UL

  • Terminal Pitch:

    3 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

0430452007 Frequently Asked Questions (FAQs)

  • The recommended mating sequence for the 0430452007 connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the 0430452007 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and fastening procedures to ensure the connector remains secure.
  • The maximum cable bend radius for the 0430452007 connector is typically 3-5 times the diameter of the cable. However, it's recommended to consult the specific cable manufacturer's guidelines for the most accurate information.
  • The 0430452007 connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels. However, it's essential to consult the datasheet and Molex's environmental specifications to ensure the connector meets the specific requirements of your application.
  • The recommended torque specification for the 0430452007 connector's screw terminals is typically between 0.5-1.5 Nm. However, it's recommended to consult the datasheet or Molex's documentation for the most accurate information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0430452007 Overview

Use the download button to access the 0430452007 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 04304, or try a keyword search, such as Power Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
