09551567620741 - HARTING

Description: D-Sub SMT 9pin angled low-profile female, w/ board locks, non-removable 4-40UNC screw lock, PL3

Download 09551567620741 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09551567620741 - HARTING - PCB symbol
click to zoom
PCB Footprints

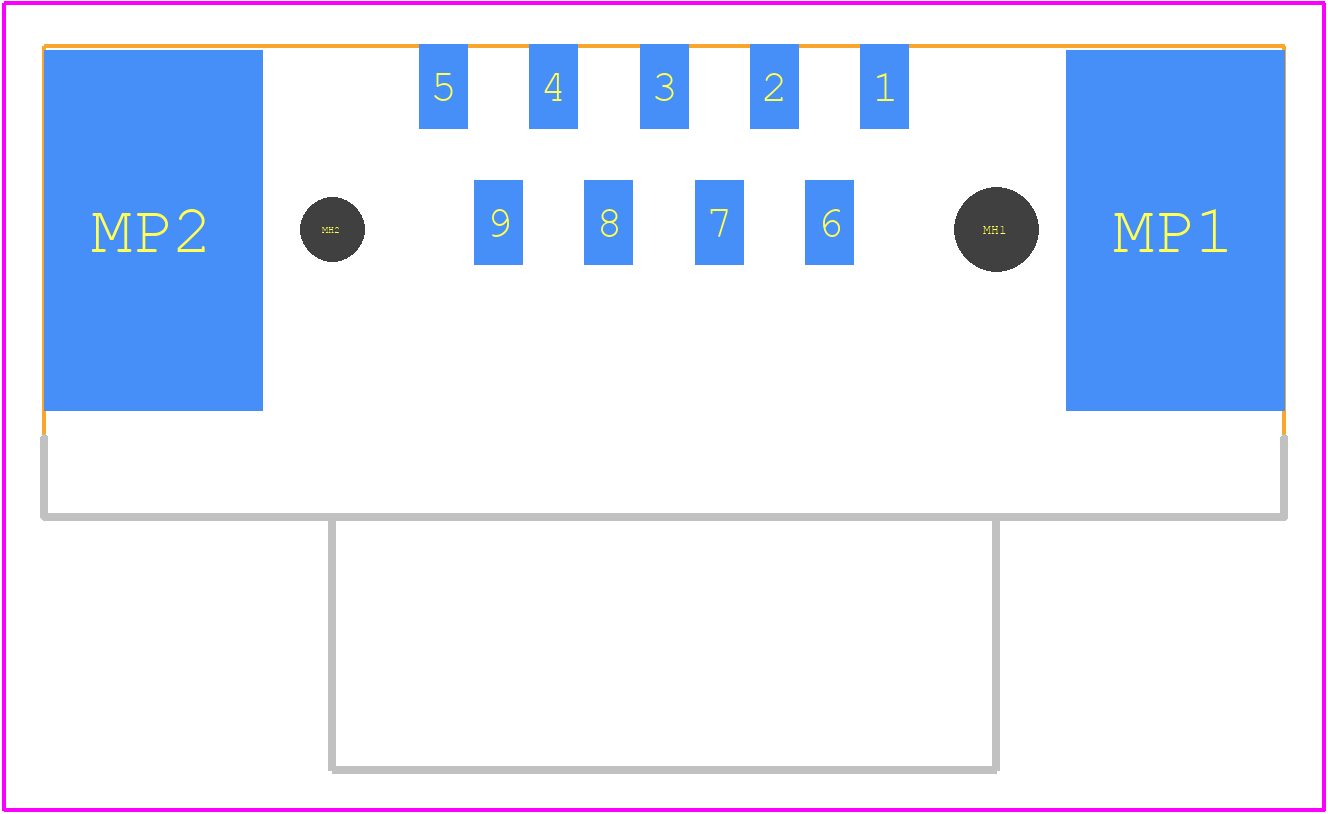

09551567620741 - HARTING PCB footprint - Other - Other - 09551567620741-2
click to zoom
3D Models
09551567620741 - HARTING - 3D model - Other - 09551567620741-2
click to zoom

09551567620741 Details

  • Manufacturer Part Number:

    09551567620741

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    D SUBMINIATURE CONNECTOR

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09551567620741 Overview

Use the download button to access the 09551567620741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09551, or try a keyword search, such as D Type Connectors
