The recommended torque for screwing the connector is typically between 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their technical support for specific torque recommendations.
Yes, the 09554156611741 connector is designed to withstand high-vibration environments. HARTING's connectors are built with robust materials and have a secure locking mechanism, making them suitable for applications with high vibration, shock, and acceleration.
The 09554156611741 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity levels. However, it's essential to consult the datasheet and manufacturer's guidelines for specific environmental ratings and any necessary precautions or modifications.
The 09554156611741 connector is part of HARTING's Han series, which is a widely adopted standard in the industry. It's compatible with other HARTING Han series connectors and may be compatible with third-party products that adhere to the same standard. However, it's recommended to verify compatibility before integrating with other products.
The lead time and minimum order quantity for the 09554156611741 connector may vary depending on the region, distributor, and availability. It's recommended to contact HARTING's sales team or authorized distributors for the most up-to-date information on lead times and MOQs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
09554156611741 Overview

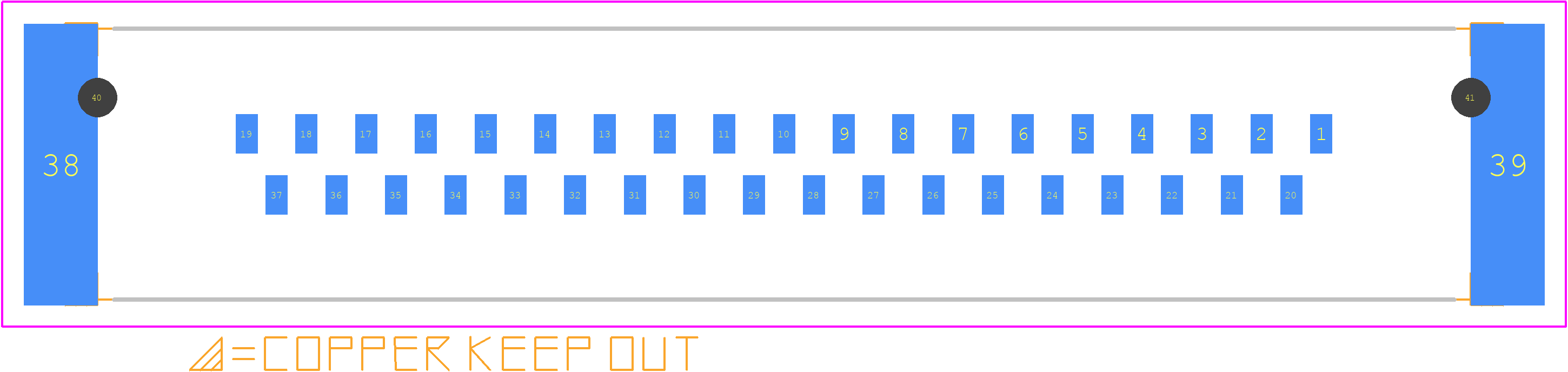

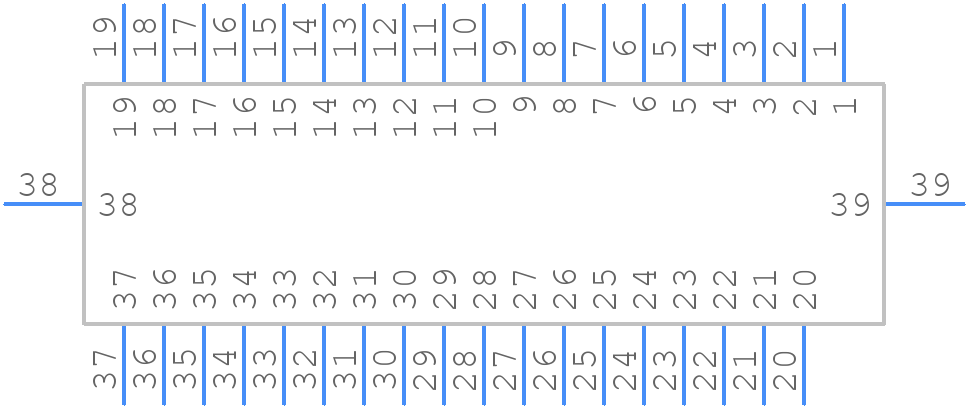

Use the download button to access the 09554156611741 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09554,
or try a keyword search, such as D Type Connectors
