09641227240 footprint, schematic symbol and 3D model by HARTING

Symbol

click to zoom

PCB Footprints

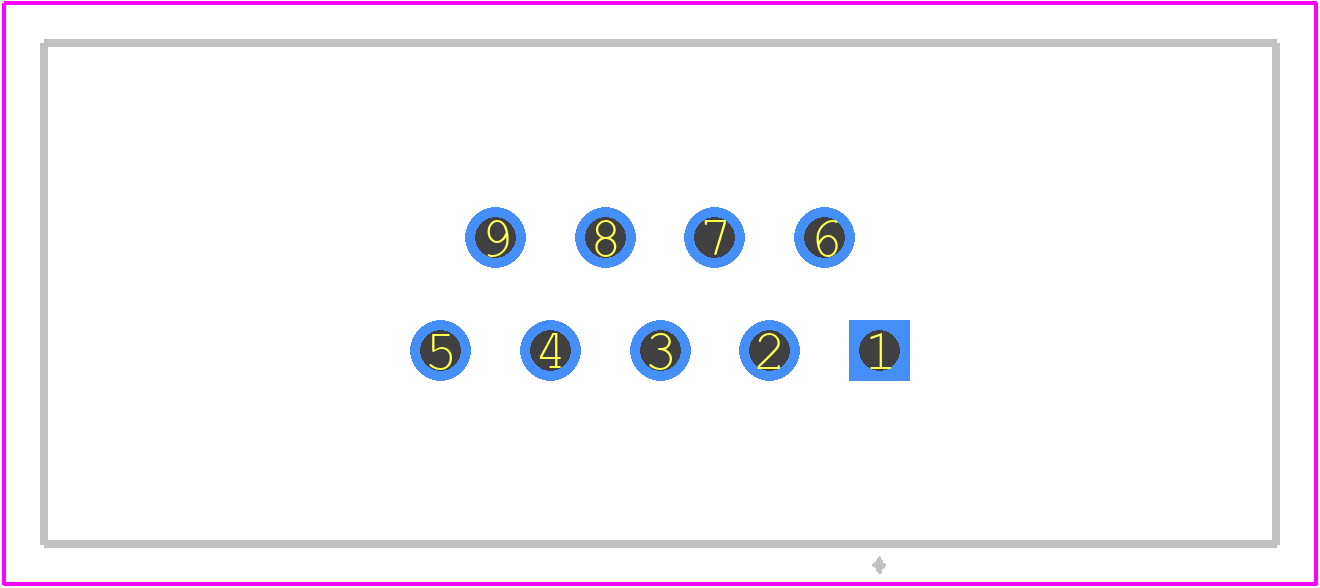

09641227240 - HARTING PCB footprint - Other - Other - 09641227240-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 09641227240
Part Number 09641227240
Manufacturer HARTING
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - 09641227240-2
Released Date Jun 29, 2021
Last Modified Date May 24, 2023 9:08 AM UTC
Pinout / Pin List Click Here (Member Only)

09641227240 Details

Manufacturer Part Number:
09641227240
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
HARTING Technology Group
YTEOL:
9
Additional Feature:
PANEL MOUNTABLE
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
YES
IEC Conformance:
NO
Insulator Material:
GLASS FILLED PBT-POLYESTER/POLYETHYLENE
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Material:
STEEL
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
9
UL Flammability Code:
94V-0

09641227240 Frequently Asked Questions (FAQs)

The operating temperature range of the 09641227240 is -40°C to 125°C, as per the HARTING Technology Group's specifications.
Yes, the 09641227240 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
Yes, the 09641227240 is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals, due to its ruggedized construction and protective coatings.
The maximum current rating of the 09641227240 is 10A per contact, as specified by HARTING Technology Group.
Yes, the 09641227240 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the necessary environmental and safety standards.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

09641227240 Overview

Use the download button to access the 09641227240 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 09641, or try a keyword search, such as D Type Connectors
