09641227800 - HARTING

Description: D-Sub Ferrite Filter 9pin male straight pcb mount, through hole (will be phased out 9/30/22)

Download 09641227800 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

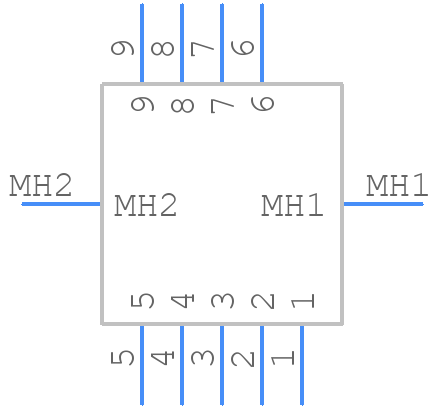

09641227800 - HARTING - PCB symbol
click to zoom
PCB Footprints

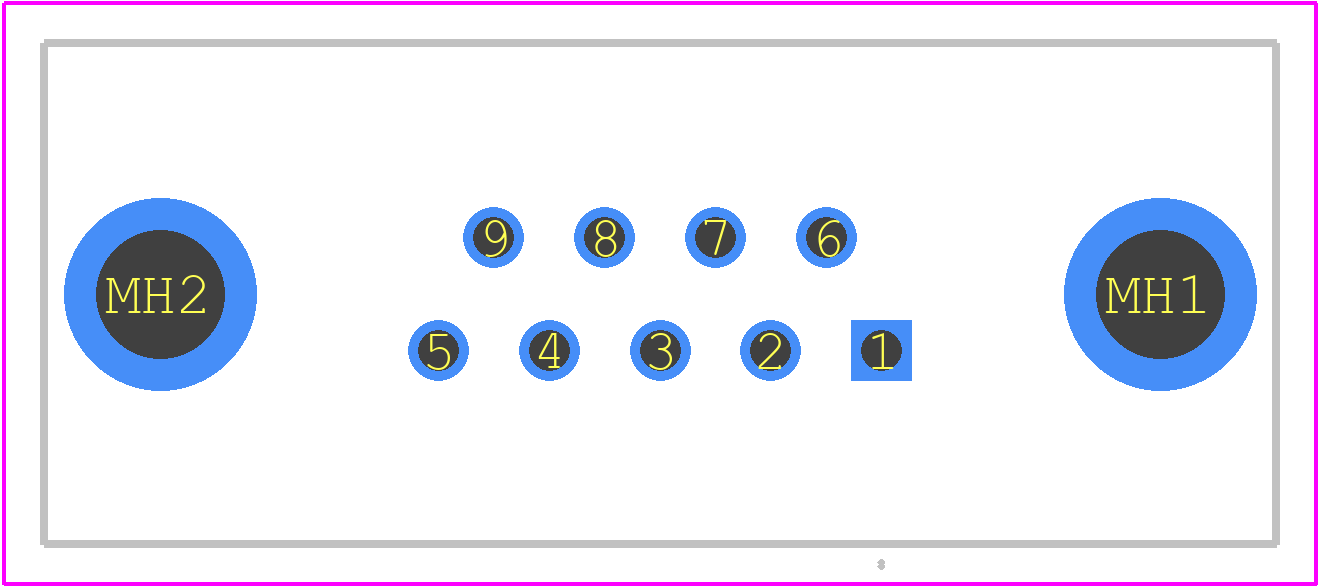

09641227800 - HARTING PCB footprint - Other - Other - 09641227800-2
click to zoom
3D Models
09641227800 - HARTING - 3D model - Other - 09641227800-2
click to zoom

09641227800 Details

  • Manufacturer Part Number:

    09641227800

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED
