09641247242 - HARTING

Description: D-Sub C-Filter 9pin male, angled pcb mount, w/ board locks, 4-40UNC Clinch Nut, 3900pf

Download 09641247242 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

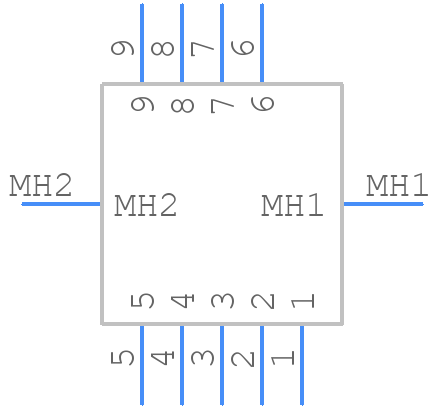

09641247242 - HARTING - PCB symbol
click to zoom
PCB Footprints

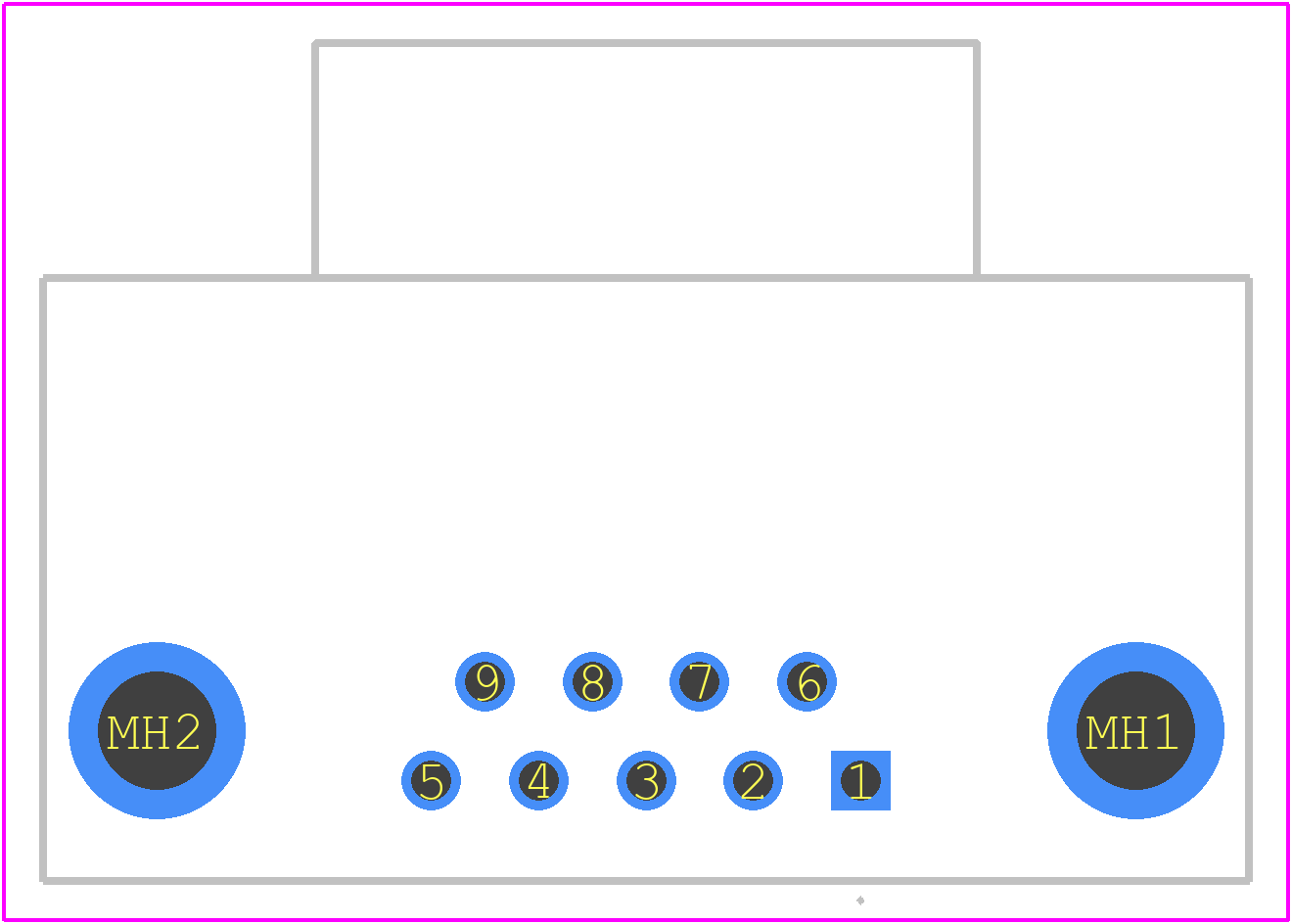

09641247242 - HARTING PCB footprint - Other - Other - 09641247242-4
click to zoom
3D Models
09641247242 - HARTING - 3D model - Other - 09641247242-4
click to zoom

09641247242 Details

  • Manufacturer Part Number:

    09641247242

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED PCT-POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    1/E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09641247242 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09641247242 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09641247242 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09641247242 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the 09641247242 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09641247242 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.
