09644227210 - HARTING

Description: D-Sub C-Filter 37pin male, straight pcb mount, through hole, 47pf

Download 09644227210 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

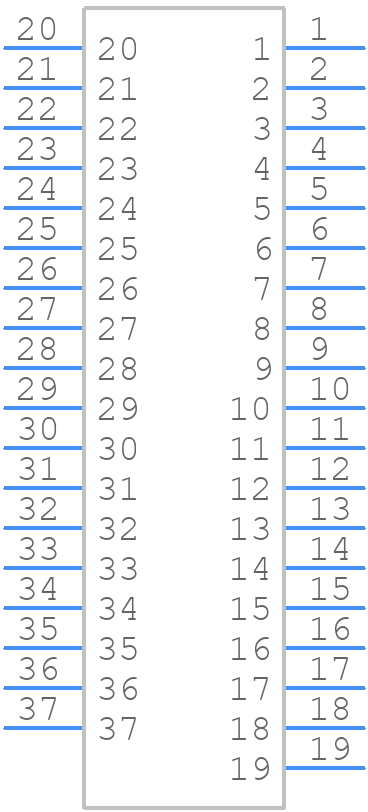

09644227210 - HARTING - PCB symbol
click to zoom
PCB Footprints

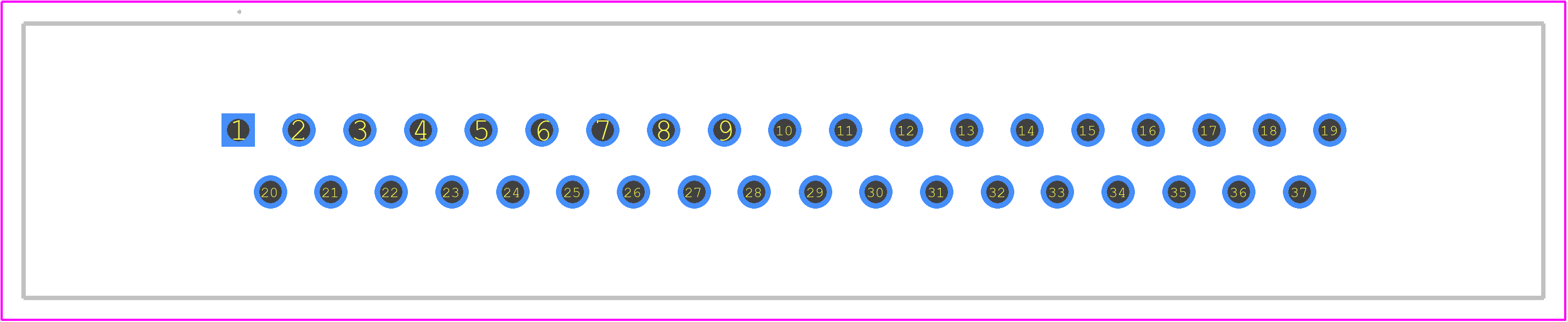

09644227210 - HARTING PCB footprint - Other - Other - 09644227210-1
click to zoom
3D Models
09644227210 - HARTING - 3D model - Other - 09644227210-1
click to zoom

09644227210 Details

  • Manufacturer Part Number:

    09644227210

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    PANEL MOUNTABLE

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED PBT-POLYESTER/POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

09644227210 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for specific guidance.
  • Yes, the 09644227210 connector is designed to withstand vibrations up to 10g according to IEC 61373. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
  • The 09644227210 connector has an IP67 rating, making it suitable for outdoor use and exposure to dust, water, and other environmental factors. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The 09644227210 connector is designed to be compatible with other HARTING connectors. While it may be possible to use it with other manufacturers' mating connectors, compatibility and performance cannot be guaranteed. It's recommended to use HARTING connectors for optimal performance and reliability.
  • The 09644227210 connector is designed to operate within a temperature range of -40°C to +125°C. However, the specific operating temperature range may vary depending on the application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09644227210 Overview

Use the download button to access the 09644227210 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09644, or try a keyword search, such as D Type Connectors
