09652226802 - HARTING

Description: D-Sub 15pin male angled 2.54mm pitch, stamped, w/o board locks, 4-40UNC, PL2

Download 09652226802 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09652226802 - HARTING - PCB symbol
click to zoom
PCB Footprints

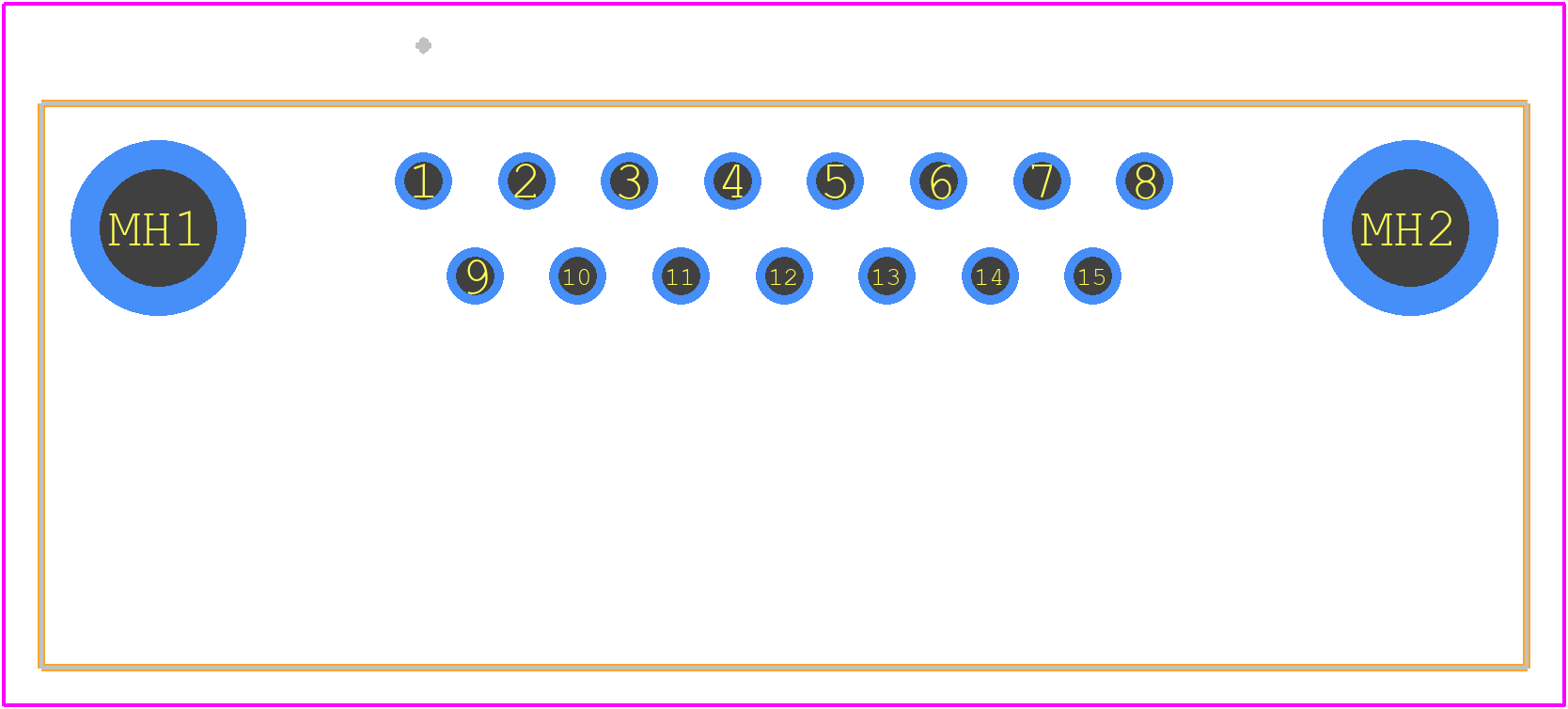

09652226802 - HARTING PCB footprint - Other - Other - 09652226802-1
click to zoom
3D Models
09652226802 - HARTING - 3D model - Other - 09652226802-1
click to zoom

09652226802 Details

  • Manufacturer Part Number:

    09652226802

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41652, IEC 60807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    2/A

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    15

  • UL Flammability Code:

    94V-0

09652226802 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09652226802 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09652226802 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09652226802 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation systems, and construction equipment.
  • The maximum operating temperature of the 09652226802 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09652226802 connector is designed to be compatible with other HARTING connectors, including those from the same product family and other compatible series.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09652226802 Overview

Use the download button to access the 09652226802 schematic symbol, PCB footprint, and 3D model.
