09653626815 - HARTING

Description: D-Sub 25pin male low profile angled, 2.54mm pitch, stamped, with board locks, M3, PL2

Download 09653626815 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09653626815 - HARTING - PCB symbol
click to zoom
PCB Footprints

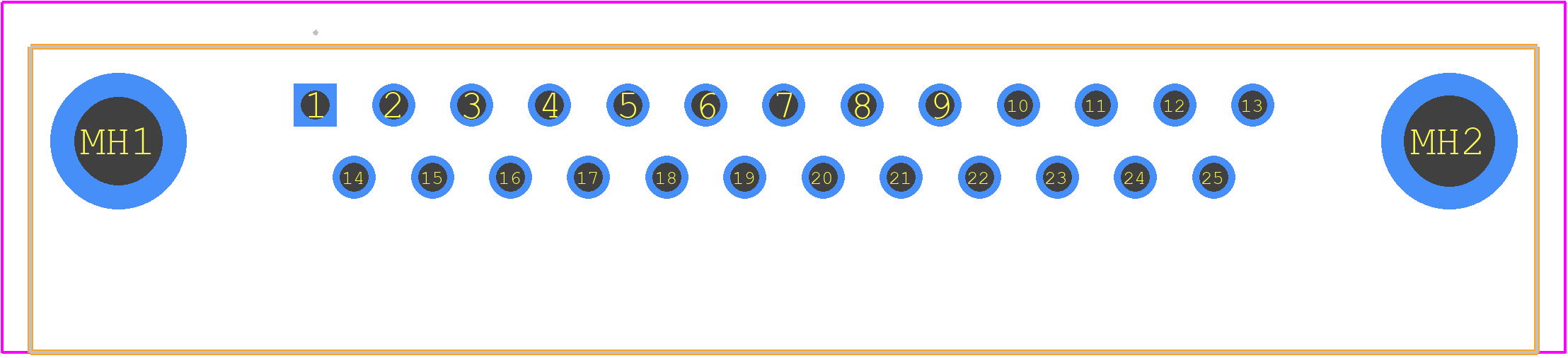

09653626815 - HARTING PCB footprint - Other - Other - 09653626815
click to zoom
3D Models
09653626815 - HARTING - 3D model - Other - 09653626815
click to zoom

09653626815 Details

  • Manufacturer Part Number:

    09653626815

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Romania

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8.5

  • Additional Feature:

    LOW PROFILE, STANDARD: DIN 41 652, IEC 60 807

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYESTER

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    3/B

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    25

  • UL Flammability Code:

    94V-0

09653626815 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09653626815 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 2.
  • Yes, the connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and meeting the requirements of IEC 60664-1 for ingress protection.
  • The mating cycle life of the 09653626815 connector is 500 cycles, making it suitable for applications where frequent mating and unmating is required.
  • Yes, the 09653626815 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.
