09654696713 - HARTING

Description: D-Sub THR/SMC 37pin male straight, stamped, with board locks, 4-40UNC screw lock, PL2

Download 09654696713 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09654696713 - HARTING - PCB symbol
click to zoom
PCB Footprints

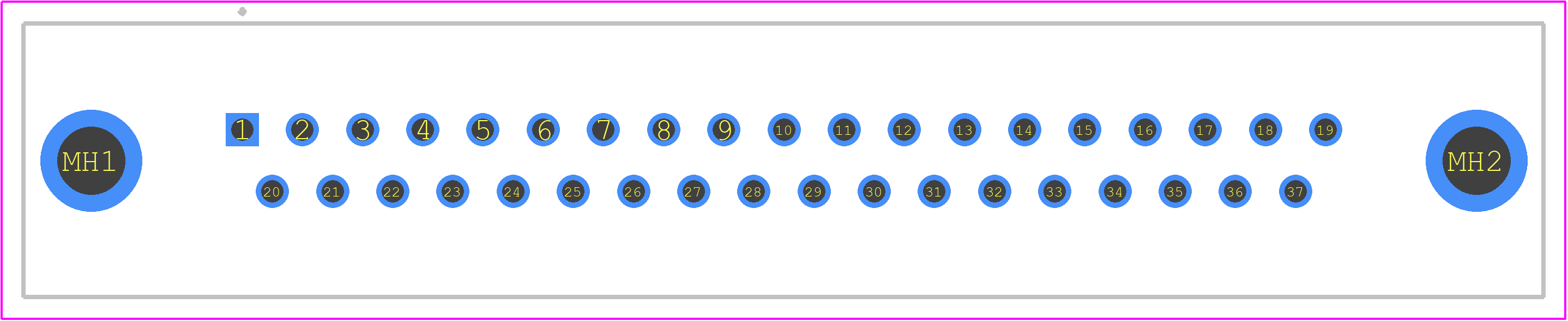

09654696713 - HARTING PCB footprint - Other - Other - D-Sub Male Straight 37 2.76 x 2.84
click to zoom
3D Models
09654696713 - HARTING - 3D model - Other - D-Sub Male Straight 37 2.76 x 2.84
click to zoom

09654696713 Details

  • Manufacturer Part Number:

    09654696713

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED PCT-POLYESTER/POLYETHYLENE

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Material:

    STEEL

  • Shell Size:

    4/C

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    37

  • UL Flammability Code:

    94V-0

09654696713 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09654696713 connector is designed to withstand vibrations up to 10g according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and screwing to prevent damage or disconnection.
  • The connector has an IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to ensure proper sealing and protection against moisture and contaminants.
  • The 09654696713 connector is designed for use with cables of 0.5 mm² to 2.5 mm² cross-sectional area. Using cables with smaller or larger gauges may affect the connector's performance and reliability.
  • The connector is rated for operation in temperatures ranging from -40°C to +125°C. However, the maximum operating temperature may vary depending on the specific application and environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09654696713 Overview

Use the download button to access the 09654696713 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09654, or try a keyword search, such as D Type Connectors
