09674226801 - HARTING

Description: Connector, Wave soldering termination, Rated current: ‌7.5 A, Male, Size: D-Sub 4, Thermoplastic resin, glass-fibre filled (PBTP), Plated steel, White, Contacts: 37, Copper alloy, Gold plated, Mating side, Sn over Ni, Termination side

Download 09674226801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

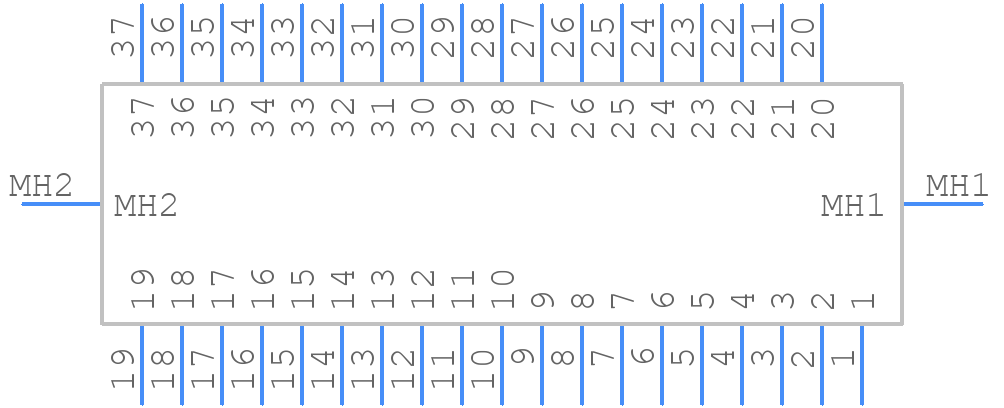

09674226801 - HARTING - PCB symbol
click to zoom
PCB Footprints

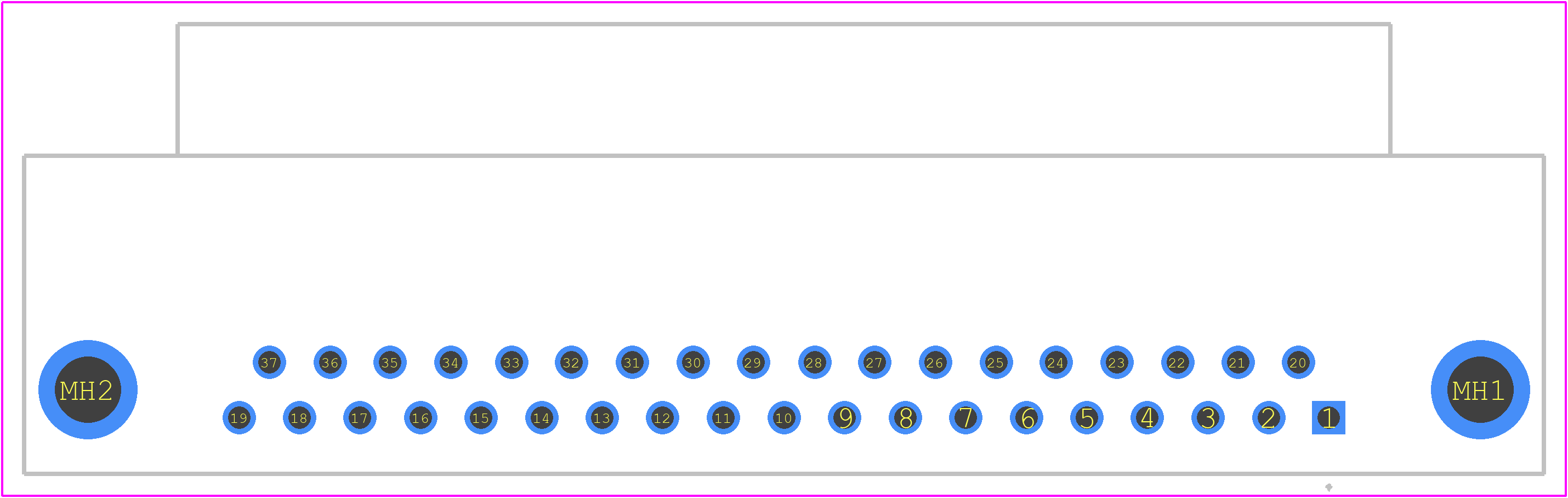

09674226801 - HARTING PCB footprint - Other - Other - 09674226801-2
click to zoom
3D Models
09674226801 - HARTING - 3D model - Other - 09674226801-2
click to zoom

09674226801 Details

  • Manufacturer Part Number:

    09674226801

  • Manufacturer:

    HARTING Technology Group

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09674226801 Overview

Use the download button to access the 09674226801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09674, or try a keyword search, such as D Type Connectors
