09675096758 - HARTING

Description: D-Sub IP67 9pin female, angled solder pins, rear plastic mounting, w/ 4-40UNC thread, board locks, PLS4

Download 09675096758 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09675096758 - HARTING - PCB symbol
click to zoom
PCB Footprints

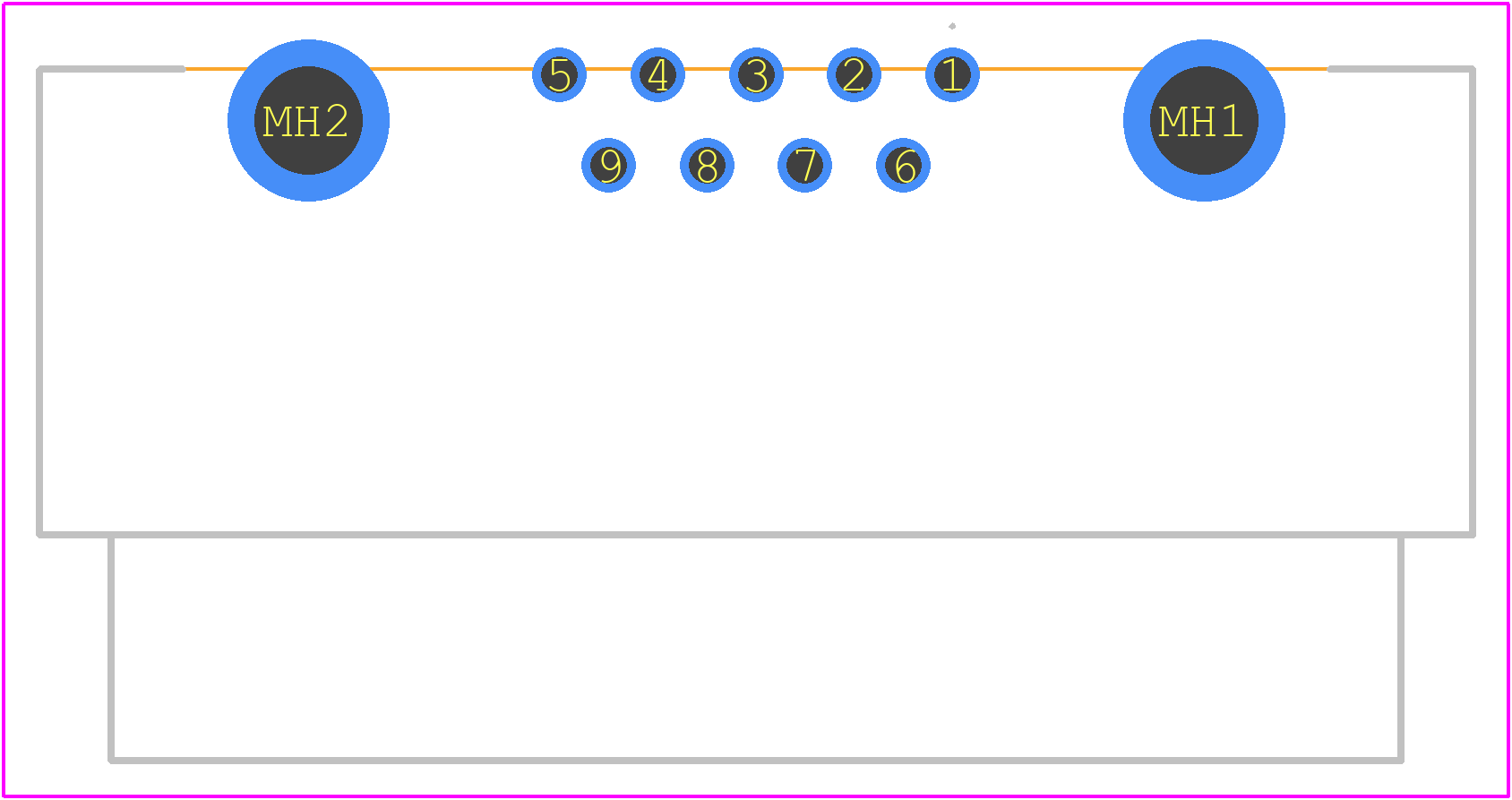

09675096758 - HARTING PCB footprint - Other - Other - 09675096758-1
click to zoom
3D Models
09675096758 - HARTING - 3D model - Other - 09675096758-1
click to zoom

09675096758 Details

  • Manufacturer Part Number:

    09675096758

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    9

  • Additional Feature:

    STANDARD: DIN 41652

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    BRASS

  • Shell Size:

    E

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    9

  • UL Flammability Code:

    94V-0

09675096758 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material. It's essential to consult the HARTING application notes for more detailed guidance.
  • Yes, the 09675096758 connector is designed to withstand vibrations up to 10 g (according to IEC 60068-2-6) and is suitable for use in industrial and transportation applications.
  • Yes, the connector is designed for automated assembly and reflow soldering processes. However, it's essential to follow HARTING's recommended soldering profiles and handling guidelines to ensure reliable connections.
  • The 09675096758 connector is rated for operation in temperatures ranging from -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • The connector has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and follow HARTING's guidelines for use in humid or wet environments.
