105CKE450M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Radial Leaded 1uF 450V 20%

Download 105CKE450M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
105CKE450M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

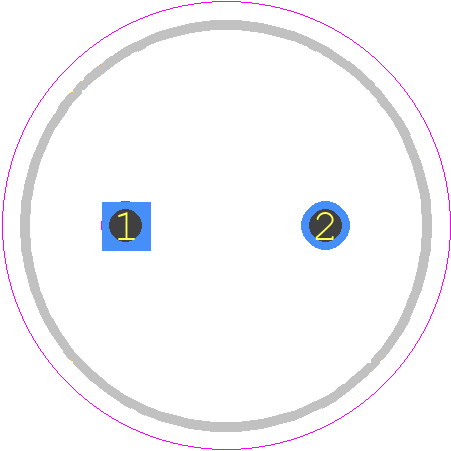

105CKE450M - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*12.5_2023
click to zoom
3D Models
105CKE450M - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 10*12.5_2023
click to zoom

105CKE450M Details

  • Manufacturer Part Number:

    105CKE450M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    1 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    331570 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0535 mA

  • Length:

    12.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    22 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

105CKE450M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to prevent damage to the capacitor.
  • Yes, the 105CKE450M is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which involves sinusoidal vibration at 10-2000 Hz with an amplitude of 1.5 mm.
  • The 105CKE450M is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which involves exposure to 85°C (185°F) and 85% relative humidity for 1000 hours.
  • The ESR of the 105CKE450M is not explicitly stated in the datasheet, but it can be estimated to be around 0.02 ohms based on the capacitor's construction and materials.
  • Yes, the 105CKE450M is suitable for use in DC-DC converter applications due to its low ESR, high ripple current rating, and stable capacitance over a wide temperature range.
