The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3-5 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to prevent damage to the capacitor.
Yes, the 107TTA010M is designed to withstand high-vibration environments. It meets the vibration test requirements of MIL-STD-202, Method 204, Condition D, which involves 10-2000 Hz frequency sweeps at 20 G peak acceleration.
Yes, the 107TTA010M is designed to operate up to 80,000 feet (24,384 meters) above sea level. However, it's essential to consult with Cornell Dubilier's application engineers to ensure the capacitor meets the specific requirements of your high-altitude application.
The ESR of the 107TTA010M is not explicitly stated in the datasheet, but it can be calculated using the impedance vs. frequency graph provided. Typically, the ESR of this capacitor is around 0.02 ohms at 100 kHz.
Yes, the 107TTA010M is suitable for use in DC-DC converter applications due to its low ESR, high ripple current capability, and high reliability. However, it's essential to ensure the capacitor meets the specific requirements of your DC-DC converter design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
107TTA010M Overview

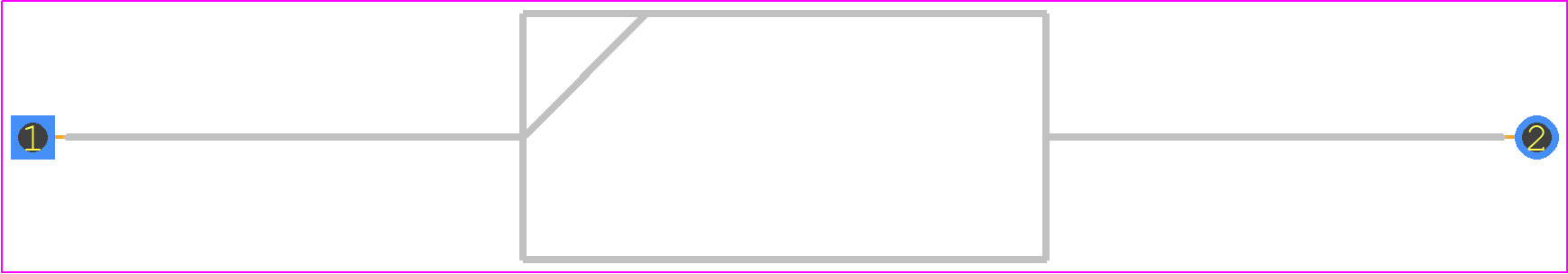

Use the download button to access the 107TTA010M schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 107TT,
or try a keyword search, such as Aluminum Electrolytic Capacitors
