107TTA100M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Axial Leaded 100uF 100V 20%

Download 107TTA100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
107TTA100M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

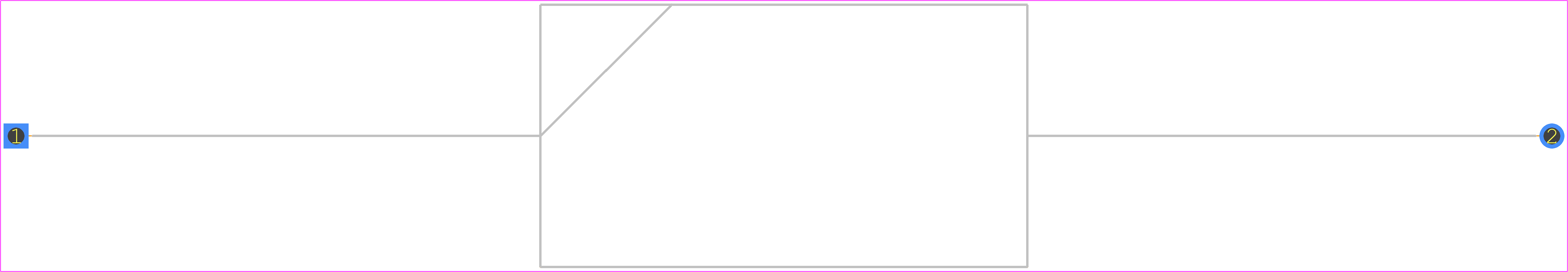

107TTA100M - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 10 x 26
click to zoom
3D Models
107TTA100M - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 10 x 26
click to zoom

107TTA100M Details

  • Manufacturer Part Number:

    107TTA100M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    1658 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.3 mA

  • Length:

    26 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    310 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.1

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

107TTA100M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 107TTA100M is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in demanding applications.
  • The 107TTA100M is designed to operate in humid environments. It meets the humidity test requirements of IEC 60068-2-78, which ensures its reliability in applications with high humidity levels.
  • Yes, the 107TTA100M is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The recommended storage condition for the 107TTA100M is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and relative humidity below 70%. This helps prevent damage and ensures the capacitor's performance and reliability.
