107TTA350M - ILLINOIS CAPACITOR

Description: TTA Series 350 V 100 uF 8 x 16 mm Axial Aluminum Electrolytic Capacitor

Download 107TTA350M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
107TTA350M - ILLINOIS CAPACITOR - PCB symbol
click to zoom
PCB Footprints

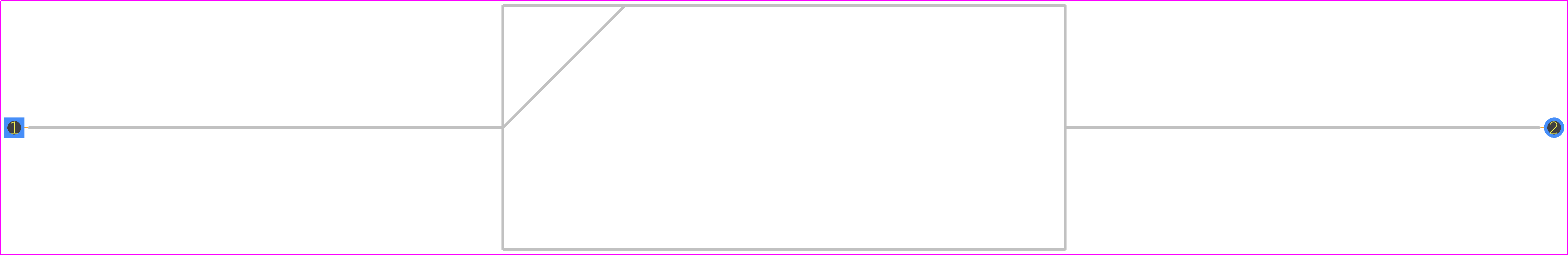

107TTA350M - ILLINOIS CAPACITOR PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x41
click to zoom
3D Models
107TTA350M - ILLINOIS CAPACITOR - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x41
click to zoom

107TTA350M Details

  • Manufacturer Part Number:

    107TTA350M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Illinois Capacitor Inc

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Custom Capabilities:

    Tape & Reel/Ammo Pack, Epoxy Ends

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    3316 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    3.54 mA

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    350 V

  • Ripple Current:

    400 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

107TTA350M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 107TTA350M is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • Yes, the 107TTA350M is compatible with lead-free soldering processes. Illinois Capacitor Inc uses lead-free terminations that meet the RoHS (Restriction of Hazardous Substances) directive.
  • The 107TTA350M is designed to operate up to 80,000 feet (24,384 meters) above sea level. However, it's essential to consult with the manufacturer or a qualified engineer for specific altitude-related applications.
  • The 107TTA350M has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's not recommended for use in extremely humid or high-moisture environments without proper protection or encapsulation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

107TTA350M Overview

Use the download button to access the 107TTA350M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 107TT, or try a keyword search, such as Ceramic Capacitors
