108CKE100M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Radial Leaded 1000uF 100 Volts 20% LYTICS/IC

Download 108CKE100M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
108CKE100M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

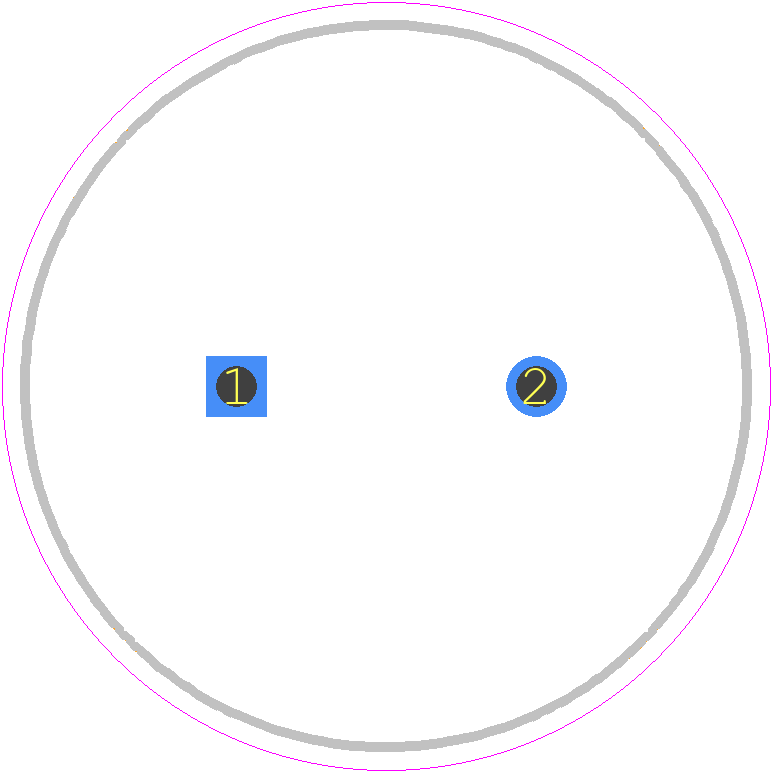

108CKE100M - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 18X40
click to zoom
3D Models
108CKE100M - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 18X40
click to zoom

108CKE100M Details

  • Manufacturer Part Number:

    108CKE100M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    133 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2020 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.08

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

108CKE100M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 108CKE100M is between 250°C to 260°C for a maximum of 10 seconds.
  • Yes, the 108CKE100M capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the 108CKE100M capacitor can be found in the Cornell Dubilier Electronics Inc application notes or by contacting their technical support team. It provides guidance on reducing the capacitor's voltage rating based on operating temperature and other factors.
  • Yes, the 108CKE100M capacitor is designed to withstand high-vibration environments. However, it's recommended to consult with Cornell Dubilier Electronics Inc or perform additional testing to ensure the capacitor meets the specific vibration requirements of your application.
  • The ESR of the 108CKE100M capacitor is not explicitly stated in the datasheet, but it can be obtained by contacting Cornell Dubilier Electronics Inc or by using industry-standard ESR calculation methods.
