109TTA010M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Axial Leaded 10000uF 10V 20%

Download 109TTA010M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
109TTA010M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

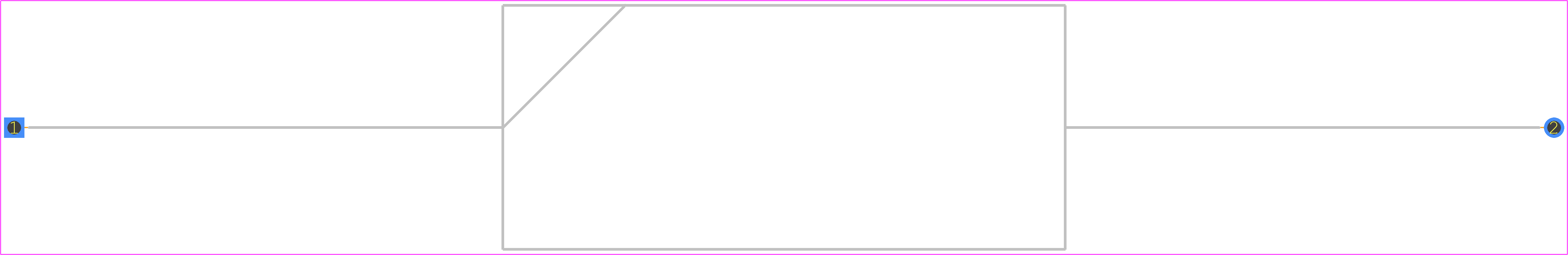

109TTA010M - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18*41_1
click to zoom
3D Models
109TTA010M - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18*41_1
click to zoom

109TTA010M Details

  • Manufacturer Part Number:

    109TTA010M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    63 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    3 mA

  • Length:

    41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Ripple Current:

    2350 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.42

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE
