- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 10AX066K4F35E3SG
- Part Number 10AX066K4F35E3SG
- Manufacturer Intel
- Pin Count 1152
- Part Category Integrated Circuit
- Package Category BGA

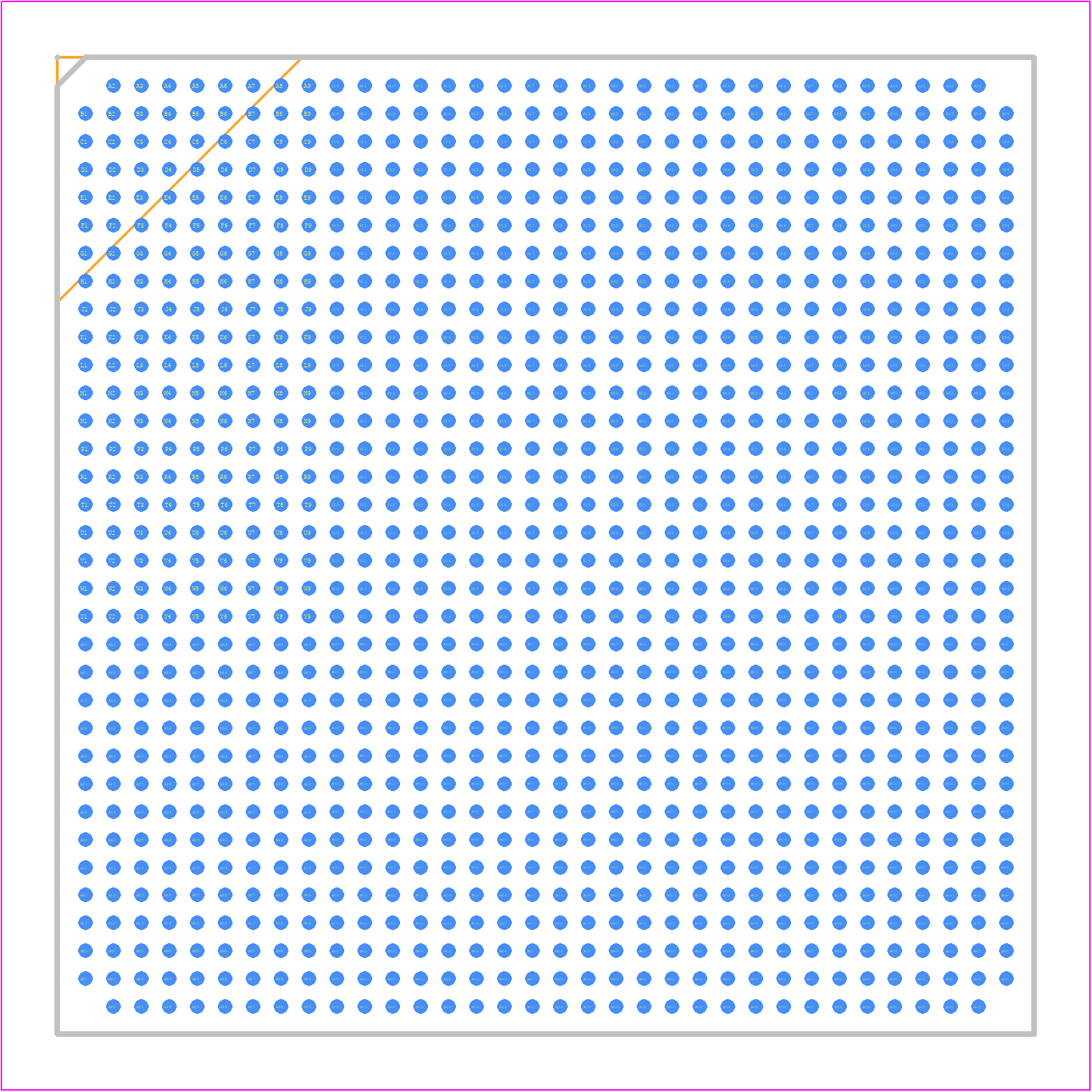

- Footprint Name BGA - 1152-Pin FineLine Ball-Grid Array (FBGA) - Flip Chip - Flat Top Single-Piece Lid - A:3.35
- Released Date Aug 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
10AX066K4F35E3SG Details
-
Manufacturer Part Number:
10AX066K4F35E3SG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Transferred
-
Package Description:
FBGA-1152
-
Country Of Origin:
Mainland China, Malaysia, Taiwan, USA, Vietnam
-
ECCN Code:
3A991
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Intel Corporation
-
YTEOL:
9.15
-
JESD-30 Code:
S-PBGA-B1152
-
Length:
35 mm
10AX066K4F35E3SG Frequently Asked Questions (FAQs)
-
The maximum power consumption of the 10AX066K4F35E3SG is approximately 12W, but this can vary depending on the specific design and usage.
-
Intel provides a DDR3 memory interface IP core that can be used to implement a DDR3 memory interface on the 10AX066K4F35E3SG. The IP core is available through the Intel Quartus Prime software.
-
Yes, the 10AX066K4F35E3SG has high-speed transceivers that can be used to implement PCIe and SATA interfaces. Intel provides IP cores and design examples to help with the implementation.
-
To optimize the 10AX066K4F35E3SG for low power consumption, use the Intel Quartus Prime software to enable power-saving features like clock gating, voltage scaling, and dynamic voltage and frequency scaling. Additionally, use low-power design techniques like pipelining and parallel processing.
-
Yes, the 10AX066K4F35E3SG has built-in cryptographic primitives like AES and SHA that can be used to implement cryptographic algorithms. Intel also provides IP cores and design examples for cryptographic applications.
Trust Checks
Community Provided
System Verified
Community Approved
10AX066K4F35E3SG Overview
Use the download button to access the 10AX066K4F35E3SG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10AX0,
or try a keyword search, such as Field Programmable Gate Arrays
