Intel provides a PCB design guide for the 10CL006YU256A7G, which recommends a 4-6 layer stackup with a minimum of 2 mil trace width and 2 mil spacing. Additionally, Intel suggests using a high-speed PCB material with a dielectric constant of 3.5-4.5.
Intel recommends a power supply design with multiple voltage rails, including 1.0V, 1.2V, and 3.3V. The power supply should be able to provide a minimum of 10A of current, and Intel suggests using a high-quality, low-ESR capacitor for decoupling.
The 10CL006YU256A7G has an industrial temperature range of -40°C to 100°C, but Intel recommends operating the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
Intel recommends using a reliable configuration interface, such as JTAG or PCIe, and following the recommended configuration and programming procedures outlined in the Intel Quartus Prime software documentation.
Intel recommends following high-speed design practices, such as using differential signaling, controlling impedance, and minimizing signal reflections. Additionally, Intel suggests using the Intel Quartus Prime software to analyze and optimize signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10CL006YU256A7G Overview

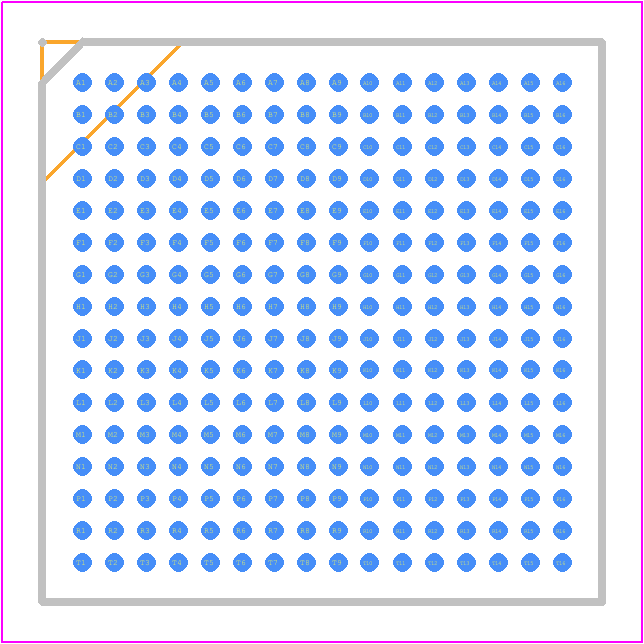

Use the download button to access the 10CL006YU256A7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10CL0,
or try a keyword search, such as Field Programmable Gate Arrays
