Intel provides a PCB design guide for the 10CL010YU256A7G FPGA, which includes recommendations for PCB layout, stackup, and signal routing to ensure optimal signal integrity. The guide can be found on Intel's website.
Intel recommends using a power management IC (PMIC) specifically designed for the 10CL010YU256A7G FPGA, such as the Intel Enpirion Power Management IC. The PMIC provides a single-chip solution for power sequencing and voltage regulation, and is optimized for the FPGA's power requirements.
The 10CL010YU256A7G FPGA has a maximum junction temperature of 100°C. Intel recommends using a heat sink or thermal interface material to ensure proper thermal management. The FPGA's thermal design guide provides more detailed information on thermal management requirements.
The 10CL010YU256A7G FPGA's clocking and PLLs can be configured using Intel's Quartus Prime software. The software provides a graphical user interface for configuring clock domains, PLLs, and clock routing. Intel also provides documentation and application notes on clocking and PLL configuration.
The 10CL010YU256A7G FPGA has several security features, including bitstream encryption, authentication, and secure boot. Intel provides documentation and application notes on implementing these security features, as well as a security development kit (SDK) for developing secure FPGA applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10CL010YU256A7G Overview

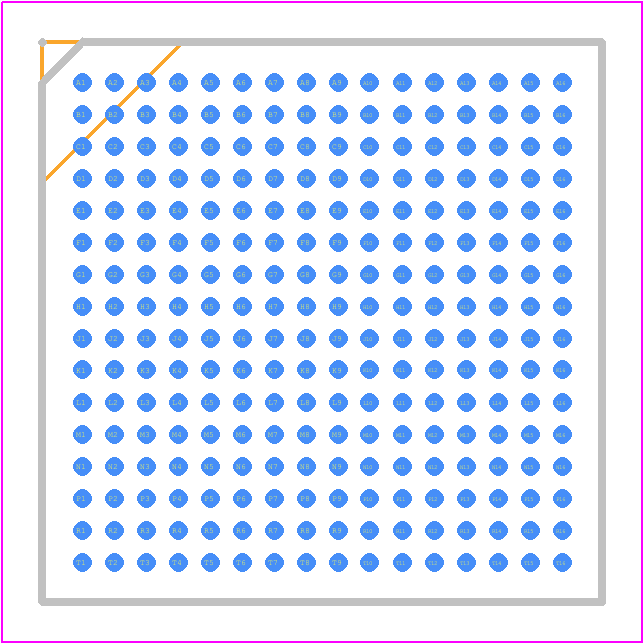

Use the download button to access the 10CL010YU256A7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10CL0,
or try a keyword search, such as Field Programmable Gate Arrays
