-40 TO 125 TEMPERATURE RANGE IS AVAILABLE AS EXTENDED INDUSTRIAL
JESD-30 Code:
S-PBGA-B256
Length:
14 mm
Number of CLBs:
645
Number of Inputs:
176
Number of Logic Cells:
10320
Number of Outputs:
176
Number of Terminals:
256
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Organization:
645 CLBS
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Equivalence Code:
BGA256,16X16,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Seated Height-Max:
1.5 mm
Supply Voltage-Max:
1.03 V
Supply Voltage-Min:
0.97 V
Supply Voltage-Nom:
1 V
Surface Mount:
YES
Technology:
60 nm
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Width:
14 mm
10CL010ZU256I8G Frequently Asked Questions (FAQs)
The maximum power consumption of the 10CL010ZU256I8G is approximately 2.5W, but this can vary depending on the specific design and operating conditions.
The 10CL010ZU256I8G is rated for commercial temperature range (0°C to 85°C), but it can be used in industrial temperature range (-40°C to 100°C) with some derating. However, it's not recommended for extreme temperature environments without proper thermal management and design considerations.
To ensure signal integrity on the high-speed interfaces, it's essential to follow Intel's guidelines for PCB design, layout, and routing. This includes using controlled impedance traces, minimizing signal reflections, and using termination resistors as needed.
The 10CL010ZU256I8G is not a radiation-hardened device, and it's not suitable for use in high-radiation environments without additional protection and design considerations. For radiation-hardened applications, Intel offers specific FPGA families, such as the RTG4 and RTAX families.
Intel provides various security features in the 10CL010ZU256I8G, including AES encryption, secure boot, and anti-tamper protection. To secure the device, it's essential to use these features, implement secure design practices, and follow Intel's guidelines for secure FPGA development.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10CL010ZU256I8G Overview

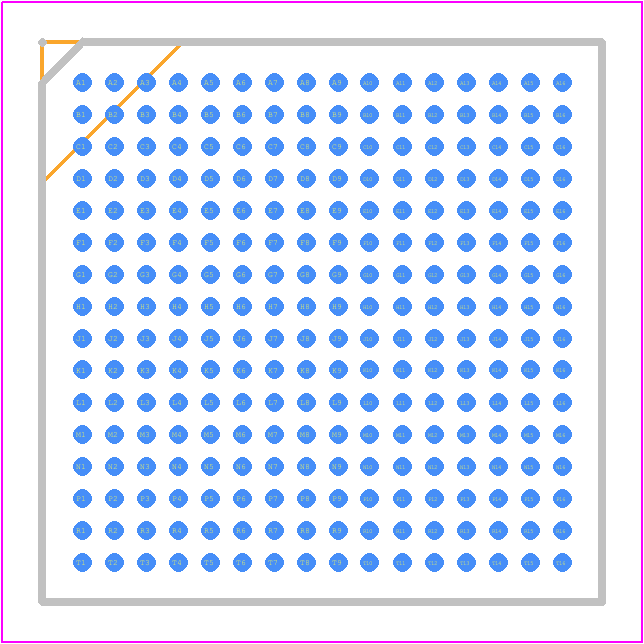

Use the download button to access the 10CL010ZU256I8G schematic symbol, PCB footprint, and 3D model.
