10CL016YE144I7G - Intel

Description: IC FPGA 78 I/O 144 EPFQ

Download 10CL016YE144I7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

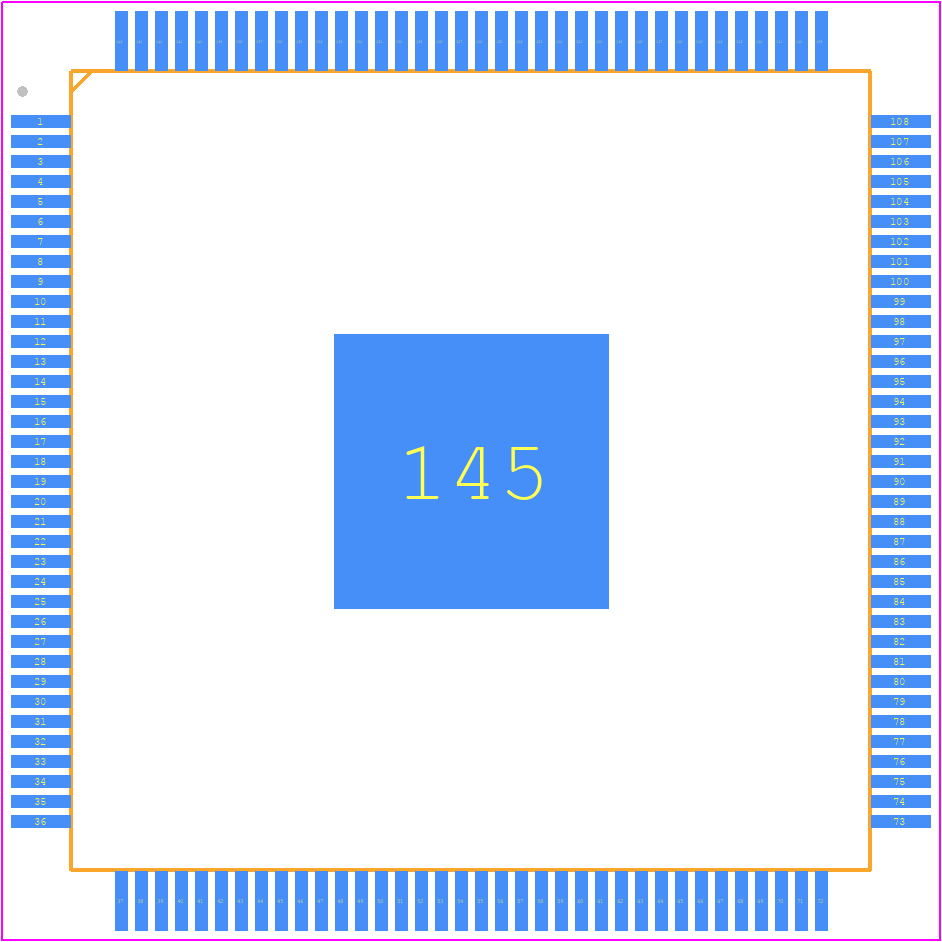

10CL016YE144I7G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:6.7
click to zoom
3D Models
10CL016YE144I7G - Intel  - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:6.7
click to zoom

10CL016YE144I7G Details

  • Manufacturer Part Number:

    10CL016YE144I7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    EQFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G144

  • JESD-609 Code:

    e3

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    963

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    963 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    20 mm

10CL016YE144I7G Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10CL016YE144I7G is approximately 2.5W, but this can vary depending on the specific application and usage.
  • To implement a CDC in the 10CL016YE144I7G, you can use Intel's recommended CDC techniques, such as using synchronizers, FIFOs, or gray code counters, and follow the guidelines outlined in the Intel FPGA Clock Domain Crossing User Guide.
  • The maximum frequency of the 10CL016YE144I7G depends on the specific application and the speed grade of the device. For the -I7 speed grade, the maximum frequency is approximately 350 MHz.
  • To optimize the 10CL016YE144I7G for low power consumption, you can use various techniques such as clock gating, power gating, and voltage scaling, and follow Intel's power optimization guidelines for FPGAs.
  • The 10CL016YE144I7G has a total of 16,064 logic elements (LEs) available for use in your design.
