10CL025YE144A7G - Intel

Description: 10CL025YE144A7G

Download 10CL025YE144A7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

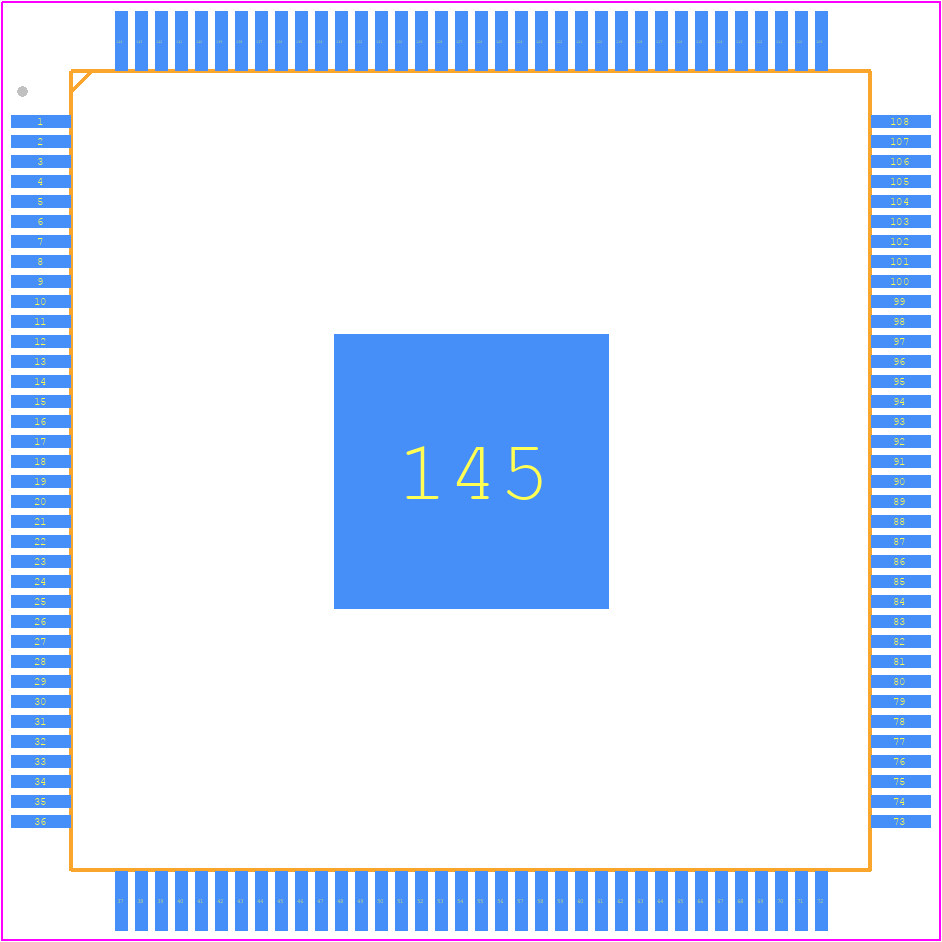

10CL025YE144A7G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:6.7
click to zoom
3D Models
10CL025YE144A7G - Intel  - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:6.7
click to zoom

10CL025YE144A7G Details

  • Manufacturer Part Number:

    10CL025YE144A7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    EQFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    9

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Number of CLBs:

    1539

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1539 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    60 nm

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

10CL025YE144A7G Frequently Asked Questions (FAQs)

  • The maximum power consumption of the 10CL025YE144A7G is approximately 2.5W, but this can vary depending on the specific design and usage.
  • To implement a CDC in the 10CL025YE144A7G, you can use Intel's recommended CDC techniques, such as using synchronizers, FIFOs, or gray counters. You can also use the Intel Quartus Prime software to help implement CDCs.
  • The maximum frequency of the 10CL025YE144A7G is approximately 500 MHz, but this can vary depending on the specific design and usage.
  • To optimize timing closure, use the Intel Quartus Prime software to analyze and optimize your design. You can also use techniques such as pipelining, retiming, and register balancing to improve timing closure.
  • The best way to implement a reset signal in the 10CL025YE144A7G is to use a synchronous reset, which ensures that the reset signal is synchronized with the clock domain. You can also use Intel's recommended reset strategies, such as using a reset synchronizer or a reset controller.
