10M02DCV36C8G - Intel

Description: FPGA - Field Programmable Gate Array non-volatile FPGA, 27 I/O, 36WLCSP

Download 10M02DCV36C8G Model

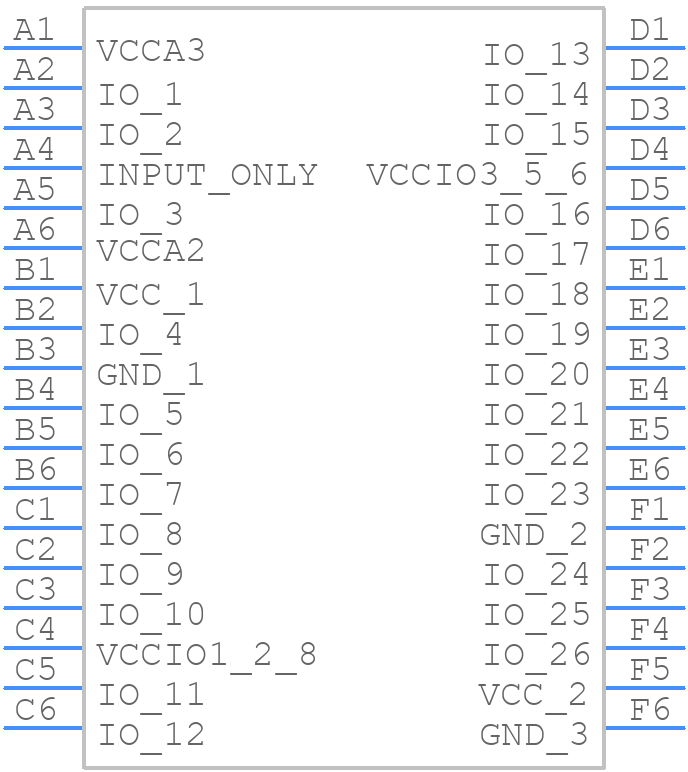

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
10M02DCV36C8G - Intel PCB footprint - Other - Other - 36-Pin Very FineLine Ball-Grid Array (VBGA) – Wafer Level Chip Scale Package (WLCSP) - A:0.54_FF
click to zoom
3D Models
10M02DCV36C8G - Intel  - 3D model - Other - 36-Pin Very FineLine Ball-Grid Array (VBGA) – Wafer Level Chip Scale Package (WLCSP) - A:0.54_FF
click to zoom

10M02DCV36C8G Details

  • Manufacturer Part Number:

    10M02DCV36C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    WLCSP-36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • JESD-30 Code:

    R-PBGA-B36

  • Length:

    3.466 mm

  • Moisture Sensitivity Level:

    1

  • Number of CLBs:

    125

  • Number of Inputs:

    246

  • Number of Logic Cells:

    2000

  • Number of Outputs:

    246

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Organization:

    125 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA36,6X6,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.54 mm

  • Supply Voltage-Max:

    1.25 V

  • Supply Voltage-Min:

    1.15 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.396 mm
