10M02SCE144A7G - Intel

Description: FPGA MAX 10 Family 2000 Cells 55nm Technology 1.2V Automotive 144-Pin EQFP EP

Download 10M02SCE144A7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10M02SCE144A7G - Intel - PCB symbol
click to zoom
PCB Footprints

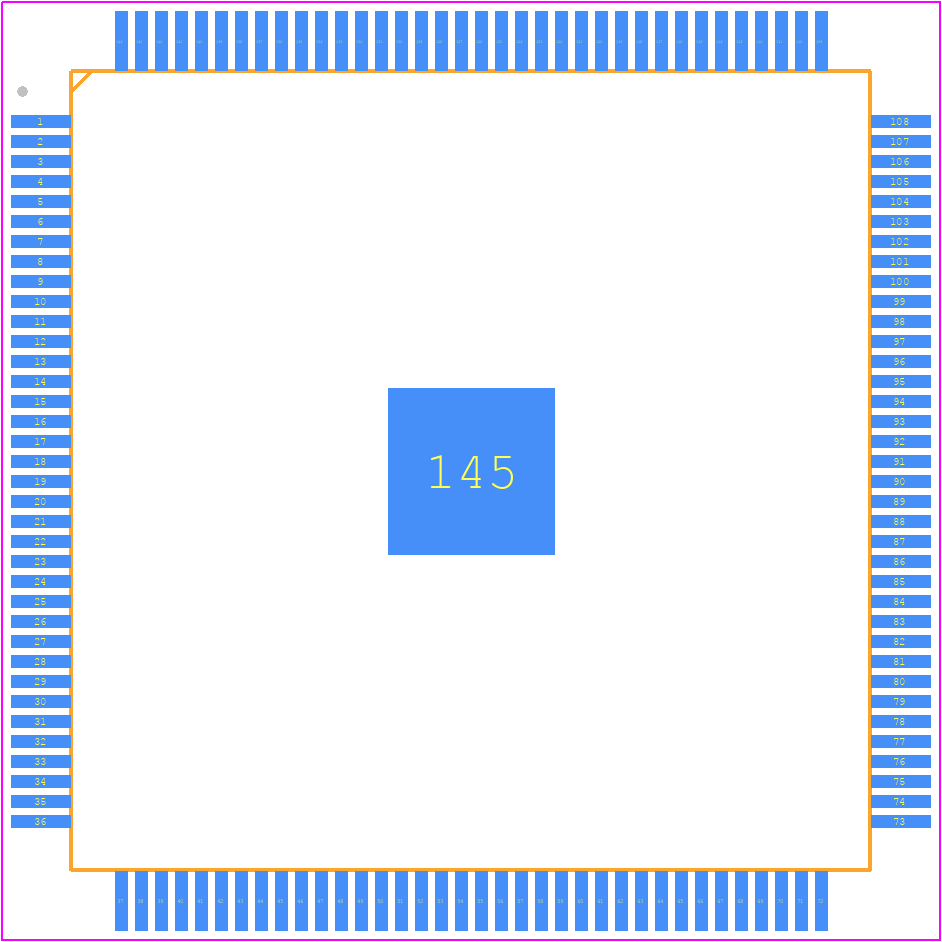

10M02SCE144A7G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - EQFP (A:1.65 - D2:4.00)
click to zoom
3D Models
10M02SCE144A7G - Intel - 3D model - Quad Flat Packages - EQFP (A:1.65 - D2:4.00)
click to zoom

10M02SCE144A7G Details

  • Manufacturer Part Number:

    10M02SCE144A7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    125

  • Number of Inputs:

    246

  • Number of Logic Cells:

    2000

  • Number of Outputs:

    246

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    125 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QFP

  • Package Equivalence Code:

    HQFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

10M02SCE144A7G Frequently Asked Questions (FAQs)

  • Intel recommends a 4-layer PCB with a solid ground plane and thermal vias to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for optimal thermal performance.
  • Intel recommends a power-up sequence of VCCIO, then VCC, and finally VREF. A power-down sequence of VREF, then VCC, and finally VCCIO is recommended. A minimum of 10 ms delay is recommended between power-up and power-down sequences.
  • The maximum operating temperature for the 10M02SCE144A7G is 100°C (TJ). However, Intel recommends operating the device at a maximum temperature of 85°C (TJ) for optimal reliability and performance.
  • Intel recommends using asynchronous FIFOs or synchronizers to handle clock domain crossing. Additionally, Intel provides IP cores and design examples to help implement CDC in the 10M02SCE144A7G.
  • Intel recommends using the Quartus II software to configure the 10M02SCE144A7G. The software provides a user-friendly interface to configure the device's registers, clock settings, and other parameters.
