Part Image

10M08SAU169A7G - Intel

Description: FPGA - Field Programmable Gate Array

Download 10M08SAU169A7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

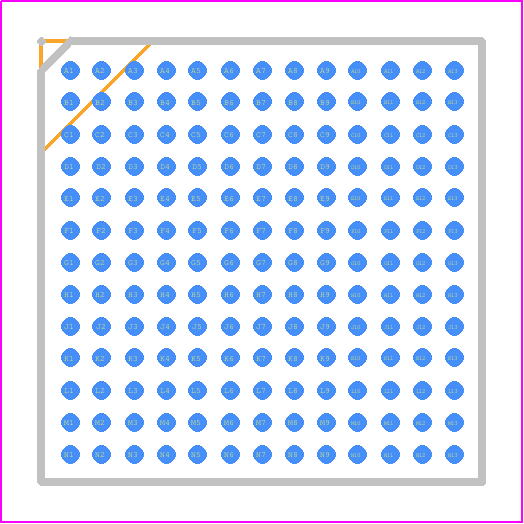

10M08SAU169A7G - Intel PCB footprint - BGA - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.5
click to zoom
3D Models
10M08SAU169A7G - Intel  - 3D model - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.5
click to zoom

10M08SAU169A7G Details

  • Manufacturer Part Number:

    10M08SAU169A7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B169

  • Length:

    11 mm

  • Number of CLBs:

    500

  • Number of Inputs:

    250

  • Number of Logic Cells:

    8000

  • Number of Outputs:

    250

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    500 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA169,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

10M08SAU169A7G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M08SAU169A7G is -40°C to 100°C.
  • To implement a CDC in the 10M08SAU169A7G, use the Intel Quartus II software to synchronize the clock domains using a synchronizer or a FIFO-based CDC.
  • The maximum frequency achievable with the 10M08SAU169A7G depends on the specific design and implementation, but it can reach up to 500 MHz.
  • To optimize power consumption, use the Intel Quartus II software to enable power-saving features such as clock gating, voltage scaling, and dynamic voltage and frequency scaling.
  • Yes, the 10M08SAU169A7G is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its robust design and manufacturing process.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10M08SAU169A7G Overview

Use the download button to access the 10M08SAU169A7G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M08, or try a keyword search, such as Field Programmable Gate Arrays

Parts related to 10M08SAU169A7G

Showing 0 results
