10M16SCE144I7G - Intel

Description: FPGA MAX 10 Family 16000 Cells 55nm Technology 1.2V 144-Pin EQFP EP

Download 10M16SCE144I7G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

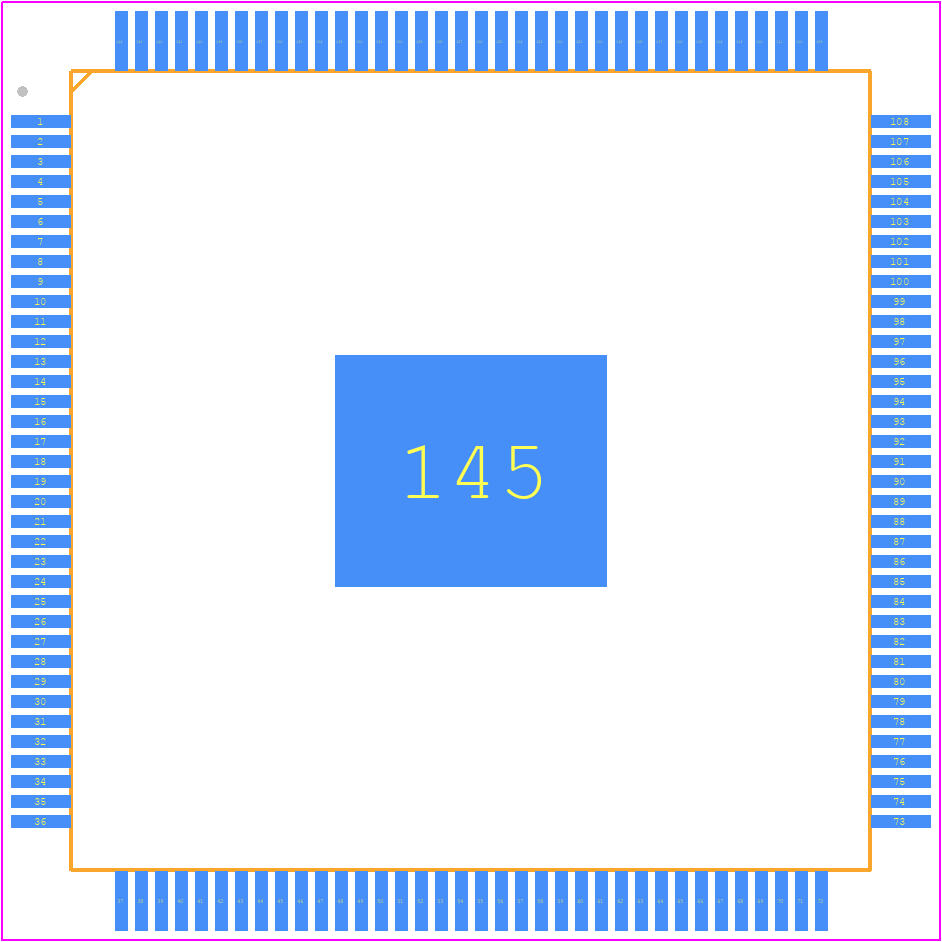

10M16SCE144I7G - Intel PCB footprint - Quad Flat Packages - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
click to zoom
3D Models
10M16SCE144I7G - Intel  - 3D model - Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for 10M16SCE144I7G
  • Part Number 10M16SCE144I7G
  • Manufacturer Intel
  • Pin Count 145
  • Part Category Integrated Circuit
  • Package Category Quad Flat Packages
  • Footprint Name Quad Flat Packages - 144-Pin Plastic Enhanced Quad Flat Pack (EQFP) - Wire Bond - A:1.65 - D2:4.00
  • Released Date Sep 1, 2021
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

10M16SCE144I7G Details

  • Manufacturer Part Number:

    10M16SCE144I7G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    QFP-144

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PQFP-G144

  • Length:

    20 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1000

  • Number of Inputs:

    320

  • Number of Logic Cells:

    16000

  • Number of Outputs:

    320

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1000 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    HQFP144,.87SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.65 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    20 mm

10M16SCE144I7G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M16SCE144I7G is -40°C to 100°C.
  • To implement a CDC in the 10M16SCE144I7G, use a synchronizer circuit or a FIFO-based CDC, and ensure that the clock domains are properly isolated.
  • The maximum frequency achievable with the 10M16SCE144I7G depends on the specific design and implementation, but it can reach up to 500 MHz.
  • To optimize power consumption, use power-aware design techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS).
  • Use the Intel FPGA's DDR3 memory interface IP core, which provides a pre-verified and optimized interface for DDR3 memory.
