Intel provides a PCB layout guide for Cyclone 10M devices, which includes recommendations for signal integrity, power distribution, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize signal degradation.
Intel recommends a specific power sequencing scheme for the 10M16SCU169A7P, which involves powering up the core voltage (VCC) before the auxiliary voltage (VCCAUX). A well-designed power sequencing scheme is crucial to prevent damage to the device and ensure reliable operation.
The 10M16SCU169A7P has a thermal design power (TDP) of 2.5W. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinks, thermal interfaces, and airflow management. Intel provides thermal modeling and simulation tools to help with thermal design.
Intel provides a range of optimization tools and techniques, including the Quartus II software, which allows designers to optimize the device's performance, power consumption, and area usage. Additionally, Intel offers application notes and design guides for specific use cases, such as high-speed interfaces and DSP applications.
The 10M16SCU169A7P is designed to meet various radiation and EMC standards, including those for aerospace, industrial, and automotive applications. However, designers must still ensure that their system design meets the specific requirements for their target application, including radiation hardening and EMC compliance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
10M16SCU169A7P Overview

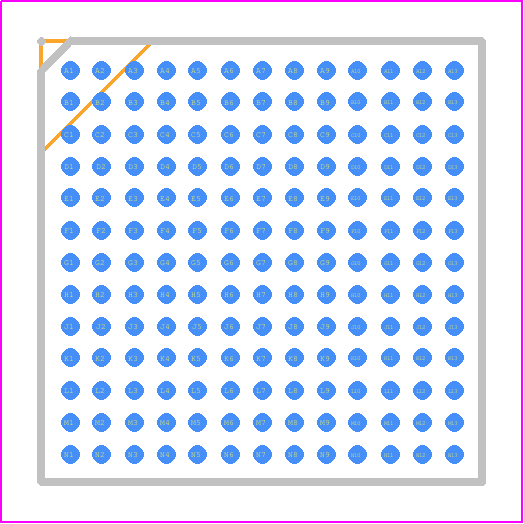

Use the download button to access the 10M16SCU169A7P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10M16,
or try a keyword search, such as Field Programmable Gate Arrays
