10M16SCU169C8G - Intel

Description: FPGA - Field Programmable Gate Array non-volatile FPGA, 130 I/O, 169UBGA

Download 10M16SCU169C8G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

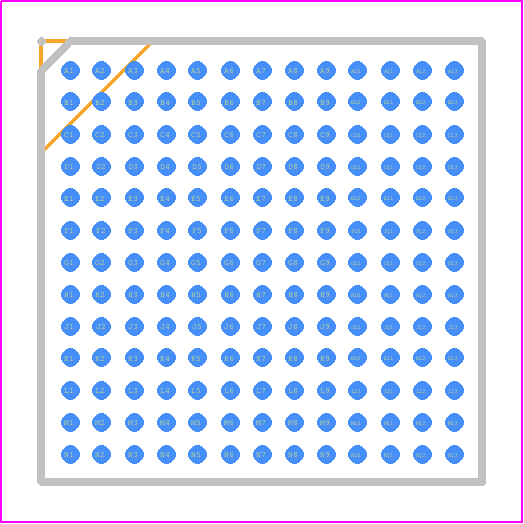

10M16SCU169C8G - Intel PCB footprint - BGA - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.5
click to zoom
3D Models
10M16SCU169C8G - Intel  - 3D model - BGA - 169-Pin Ultra FineLine Ball-Grid Array (UBGA) - Wire Bond - A:1.5
click to zoom

10M16SCU169C8G Details

  • Manufacturer Part Number:

    10M16SCU169C8G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan, USA, Vietnam

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Intel Corporation

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • JESD-30 Code:

    S-PBGA-B169

  • Length:

    11 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    1000

  • Number of Inputs:

    320

  • Number of Logic Cells:

    16000

  • Number of Outputs:

    320

  • Number of Terminals:

    169

  • Operating Temperature-Max:

    85 °C

  • Organization:

    1000 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA169,13X13,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.55 mm

  • Supply Voltage-Max:

    3.15 V

  • Supply Voltage-Min:

    2.85 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    55 nm

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    11 mm

10M16SCU169C8G Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the 10M16SCU169C8G is -40°C to 100°C.
  • To implement a CDC in the 10M16SCU169C8G, use the Intel FPGA IP Clock Domain Crossing (CDC) Megafunction, which provides a set of pre-built functions to facilitate clock domain crossing.
  • The maximum frequency achievable with the 10M16SCU169C8G depends on the specific design and implementation, but Intel claims a maximum clock frequency of up to 500 MHz.
  • To optimize power consumption in your design, use Intel's Power Analyzer tool, which provides power estimation and optimization capabilities. Additionally, consider using low-power modes, clock gating, and voltage scaling.
  • The 10M16SCU169C8G has a total of 16 Mbits of memory, divided into 169K logic elements, 169K registers, and 3.3 Mbits of RAM.
